		<title>Retail Floor Graphics: A Specification Guide</title>
		<link>https://www.tlfgraphicsusa.com/retail-floor-graphics/#utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=retail-floor-graphics</link>

		<dc:creator><![CDATA[Howell Studios]]></dc:creator>
		<pubDate>Thu, 19 Nov 2026 02:06:08 +0000</pubDate>
				<category><![CDATA[Point of Purchase]]></category>
		<category><![CDATA[point of purchase]]></category>
		<category><![CDATA[retail print]]></category>
		<category><![CDATA[retail signage]]></category>
		<guid isPermaLink="false">https://www.tlfgraphicsusa.com/?p=24315</guid>

					<description><![CDATA[What to specify for retail floor graphics: which floors hold film, which slip-resistance standard the certificate names, and how long a laminate lasts.]]></description>
										<content:encoded><![CDATA[<p><script type="application/ld+json">
{
  "@context": "https://schema.org",
  "@graph": [
    {
      "@type": "BlogPosting",
      "headline": "Retail Floor Graphics: A Specification Guide",
      "description": "What to specify for retail floor graphics: which floors hold film, which slip-resistance standard the certificate names, and how long a laminate lasts.",
      "datePublished": "2026-11-11",
      "dateModified": "2026-11-11",
      "inLanguage": "en-US",
      "author": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/"
      },
      "publisher": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/"
      },
      "mainEntityOfPage": {
        "@type": "WebPage",
        "@id": "https://www.tlfgraphicsusa.com/retail-floor-graphics/"
      },
      "about": "Retail floor graphics specification, slip resistance and installation"
    },
    {
      "@type": "FAQPage",
      "mainEntity": [
        {
          "@type": "Question",
          "name": "What are retail floor graphics made of?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Most are two products laminated together: a printed vinyl film with a floor-grade adhesive, and a textured non-skid overlaminate on top that carries the slip-resistance rating and takes the abrasion. One-part systems exist, where the printed film is itself textured and rated. Ask which build you are being quoted, because in a two-part system the rating belongs to the laminate, not to the print underneath it."
          }
        },
        {
          "@type": "Question",
          "name": "What floors can floor graphics be applied to?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Indoor films are specified for sealed concrete, terrazzo, vinyl, linoleum and ceramic tile, and some will hold on low-pile carpet. Outdoor films are built for unsealed concrete, brick and pavement. Marble and varnished wood are usually refusals: marble is porous enough to absorb adhesive and stain, and varnish can lift with the graphic. Waxed floors have to be stripped first."
          }
        },
        {
          "@type": "Question",
          "name": "How long do floor graphics last?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "The overlaminate sets the life, not the print. Short-term builds are commonly rated around three months and long-term builds around twelve, on the same base film. Outdoor floor graphics are typically rated for up to three months. Traffic volume, cleaning equipment and where the graphic sits will move the real number in either direction."
          }
        },
        {
          "@type": "Question",
          "name": "Are floor graphics slippery?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "A floor graphic built with a non-skid overlaminate is tested against a published slip-resistance standard. UL 410 covers the slip resistance of floor surface materials and sets a minimum average static coefficient of friction of 0.50 for the materials it covers. ANSI/NFSI B101.1 measures static friction on hard-surface walkways, and B101.3 measures wet dynamic friction. Ask for the test report and check whether it was run wet or dry."
          }
        },
        {
          "@type": "Question",
          "name": "Do floor graphics damage the floor when removed?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "They should not, on a sound floor within the rated period. The risks are a sealer or coating that had not fully cured when the graphic went down, a waxed floor that was not stripped, and leaving a short-term graphic in place for a year. Highly sealed floors can also bond harder than expected, which makes removal slow. Peel back a corner and pull at 180 degrees, warming stubborn areas."
          }
        },
        {
          "@type": "Question",
          "name": "What size should a retail floor graphic be?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Size it to the decision it serves and to the aisle it sits in. Directional and threshold graphics are usually read while walking, so they need short copy at a size legible from several feet away. Aisle and endcap graphics are read while standing still and can carry more. Round the corners whatever the shape, and keep the graphic clear of thresholds, mats and door swings."
          }
        }
      ]
    }
  ]
}
</script></p>
<div class="author-box" style="background:#f6f6f6;border:1px solid #e2e2e2;border-radius:10px;padding:16px 20px;color:#1a1a1a">
<p style="color:#1a1a1a;margin:.2em 0"><strong style="color:#1a1a1a">Key Takeaways</strong></p>
<ul style="color:#1a1a1a;margin:.4em 0 0">
<li style="color:#1a1a1a">The floor decides the job before the artwork does. Sealed concrete, terrazzo, vinyl, linoleum and ceramic take film. Marble and varnished wood are refusals, and a waxed floor has to be stripped first.</li>
<li style="color:#1a1a1a">A floor graphic is two products: a printed film and a non-skid overlaminate. In a two-part build, the slip-resistance rating belongs to the laminate, not to the print under it.</li>
<li style="color:#1a1a1a">Ask which standard the certificate names. UL 410 covers floor surface materials. ASTM D2047 is a floor polish standard and says nothing about your overlaminate.</li>
<li style="color:#1a1a1a">The laminate sets the service life. Short-term builds are commonly rated around three months and long-term builds around twelve, on the same base film.</li>
<li style="color:#1a1a1a">Rounded corners, butt seams and a wide shipping core are not finishing details. They are what stops edges lifting, tripping and tunneling.</li>
</ul>
</div>
<p>A floor graphic is the only piece of retail signage a customer stands on. That is why it works, and it is also why it fails in ways a window decal never does. Shoes grind it. Scrubbers run over it. Someone catches a lifted corner with a shopping cart.</p>
<p>Almost every one of those failures is decided before the file goes to press, by two things: what the floor is made of, and which laminate went on top. This guide covers both, plus the slip-resistance paperwork, the artwork rules, and what to send with a quote request so the first proof is the right one.</p>
<h2 style="color:#000000">A floor graphic is two products, not one</h2>
<p>Most retail floor graphics are a two-part build.</p>
<ul>
<li><strong>The print film.</strong> A vinyl with a floor-grade adhesive, tuned to the surface it has to hold. Indoor and outdoor films use different adhesives, and the outdoor adhesive is thicker.</li>
<li><strong>The overlaminate.</strong> A textured, non-skid film over the print. It takes the abrasion, and it is the layer that carries the slip-resistance rating.</li>
</ul>
<p>One-part systems exist, where the printed film is itself textured and rated, and they are simpler to buy. The distinction matters at quote time: in a two-part system the non-skid certification applies to the laminate, and in a one-part system it applies to the base. A quote that names a film but not a laminate has not told you what you are standing on.</p>
<p>This is also the reason a floor graphic costs more per square foot than a wall graphic of the same size. You are buying two materials and a lamination pass, not one print.</p>
<h2 style="color:#000000">The floor decides the job before the artwork does</h2>
<p>Go and look at the floor before anything else. The surface sets which film is possible, and on some surfaces the honest answer is no film at all.</p>
<p><strong>Indoor surfaces that take film.</strong> Sealed concrete, terrazzo, vinyl, linoleum and ceramic tile are the standard list. Some indoor films will also hold on low-pile carpet, which is the exception rather than the rule.</p>
<p><strong>Outdoor surfaces.</strong> Outdoor floor films are built to bond to unsealed concrete, brick and pavement. Specialist asphalt products go further and conform to asphalt, stone and stairs. Do not send an indoor film outside and expect the adhesive to cope.</p>
<p><strong>Surfaces to refuse.</strong> Marble is porous enough to absorb adhesive and stain over time. Varnished wood can lift with the graphic. Niche products are sold for both, and they can still damage the floor if they stay down too long. In a leased store, that comes out of your deposit.</p>
<p><strong>Wax is the one that catches people.</strong> If the floor is waxed, the wax has to come off first, because vinyl bonds to the wax and the wax lets go of the floor. Fresh wax over old layers is the worst case. There is a field test for it: apply a piece of the intended material, then snap it up. If finish comes away on the back, the job is not ready.</p>
<p>Grout lines, expansion joints, non-skid safety coatings and freshly coated floors all cause the same problem in different ways. Film needs a flat, cured, clean surface. A graphic bridging a grout line will tent, then lift, then collect dirt under the edge.</p>
<h2 style="color:#000000">Slip resistance: read which standard the certificate names</h2>
<p>Every floor graphic supplier will tell you their laminate is slip resistant. The useful question is which test produced that claim, because the standards named in this market do not all measure the same thing, and one of them is not about overlaminates at all.</p>
<ul>
<li><strong>UL 410, Slip Resistance of Floor Surface Materials.</strong> The standard most floor overlaminates are tested against. It sets a minimum average static coefficient of friction of 0.50 for the materials it covers.</li>
<li><strong>ANSI/NFSI B101.1.</strong> Measures the static coefficient of friction of hard-surface walkways. It excludes carpeting.</li>
<li><strong>ANSI/NFSI B101.3.</strong> Measures the wet dynamic coefficient of friction of hard-surface walkways, which is closer to what a shoe does on a wet floor than a static measurement is.</li>
<li><strong>ASTM D2047.</strong> This one is quoted often and belongs to floor polish. It defines whether a polish can be called slip resistant. It is not a test of your overlaminate.</li>
</ul>
<p>Two practical follow-ups. Ask whether the reported figure was measured wet or dry, because static friction tests are frequently run dry and a wet entrance is where the claim has to hold. And ask for the report itself rather than the sentence on the product page.</p>
<div style="background:#f7f9fb;border:1px solid #e3e8ee;border-radius:10px;padding:24px;margin:28px auto;">
<p style="margin:0 0 4px;font-size:13px;letter-spacing:.08em;text-transform:uppercase;color:#0060a8;font-weight:700;">Floor graphics spec</p>
<p style="margin:0 0 4px;font-size:20px;line-height:1.3;font-weight:700;color:#111111;">Four numbers worth asking about</p>
<p style="margin:0 0 18px;font-size:14px;line-height:1.5;color:#41505f;">Each one comes from a standards body, a film manufacturer or published trade guidance, and each one is easy to check before you order.</p>
<div role="img" aria-label="Four published floor graphics figures: a minimum average static coefficient of friction of 0.50 under UL 410; a 250 percent total ink limit on 3M's 40C indoor floor film; a 12 month rating for a long-term laminate build against about 3 months for a short-term one; and a 6 inch minimum shipping core to prevent tunneling." style="display:flex;flex-wrap:wrap;gap:12px;">
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">0.50</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">minimum average static coefficient of friction under UL 410</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">250%</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">total ink limit published for 3M 40C indoor floor film</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">12 mo</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">long-term laminate rating, against about 3 months short-term</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">6 in</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">shipping core diameter that keeps rolled graphics from tunneling</div>
</div>
</div>
<p style="margin:16px 0 0;font-size:13px;line-height:1.5;color:#41505f;">Sources: UL 410 as cited in 3M graphic film product bulletins; ink limit, laminate ratings and core size from field guidance published in Graphics Pro.</p>
</div>
<h2 style="color:#000000">How long the graphic is rated to last</h2>
<p>Service life is a laminate decision. The same base film is sold in a short-term combination rated at roughly three months and a long-term combination rated at about twelve. Outdoor floor graphics are typically rated for up to three months, because weather and grit do in a season what a sales floor does in a year.</p>
<p>Match the rating to the campaign, not to the budget. A three-month laminate under a graphic that will still be down next summer is the common and expensive mistake: the print wears through, the edges lift, and a removal that should have taken an hour turns into scraping.</p>
<p>Three things move the real number away from the rating:</p>
<ul>
<li><strong>Traffic path.</strong> A graphic in the middle of a main aisle wears faster than the same graphic two feet to the side.</li>
<li><strong>Cleaning.</strong> Ride-on scrubbers with aggressive pads shorten the life of any floor graphic. Tell the cleaning crew the graphic is there.</li>
<li><strong>Entrance grit.</strong> The first twenty feet inside a door in a Rochester, NY winter carry salt and sand. Treat that zone as outdoor duty.</li>
</ul>
<h2 style="color:#000000">Shape, seams and edges</h2>
<p>Edges are where floor graphics fail, so most of the finishing rules are edge rules.</p>
<ul>
<li><strong>Round the corners.</strong> A radius on every corner cuts the number of lifted edges and the trip hazard that comes with them. Square corners on a floor graphic are an invitation.</li>
<li><strong>Butt your seams, never overlap them.</strong> On large graphics that run more than one panel wide, 3M states plainly that overlapped seams are not recommended or warranted. An overlap is a ridge, and a ridge is what a cart wheel catches.</li>
<li><strong>Keep clear of thresholds and mats.</strong> Door swings, entry mats, floor transitions and expansion joints all need a margin. Measure to a fixed feature in the store rather than to a wall that turns out not to be straight.</li>
<li><strong>Ask for the core.</strong> Rolled graphics should ship on a wide core, around six inches. A three-inch core, or a roll wound too tightly, causes tunneling that will not fully relax on the floor.</li>
</ul>
<h2 style="color:#000000">Artwork and file prep</h2>
<p>Floor graphics are read at a walking pace from above, which changes what works.</p>
<ul>
<li><strong>Short copy, large type.</strong> Directional and threshold graphics are read in motion. Aisle and endcap graphics are read standing still and can carry more detail.</li>
<li><strong>Design for the reading angle.</strong> Nobody stands square to a floor graphic. Centered, symmetrical layouts survive being seen from an angle better than left-aligned paragraphs.</li>
<li><strong>Watch the total ink limit.</strong> Floor films have one, and canned color profiles routinely exceed it. 3M publishes a 250% total ink limit on its 40C indoor floor film. Over-saturated artwork does not dry fully before lamination, and the result is adhesive separation, shrinkage or curl.</li>
<li><strong>Die-cutting outdoor shapes.</strong> Standard die-cutting equipment often cannot cut outdoor floor products. Foil-based asphalt materials need a CNC table with a drag knife, which belongs in the schedule rather than in a surprise.</li>
</ul>
<p>Supply vector artwork with fonts outlined and a cut path on its own layer, and build to the installed size rather than scaling up a small file. The <a href="https://www.tlfgraphicsusa.com/art-resources/">art resources page</a> has the file guidelines, and sending files that already meet them is the shortest route to a first-time-right proof.</p>
<h2 style="color:#000000">Installation and removal</h2>
<p>Clean the floor first, every time, including floors that look clean and floors that are sealed. Residue from cleaning products is a common cause of adhesive failure, and a sealer or coating that has not fully cured will come up later with the graphic.</p>
<p>Work from the center out, squeegee firmly, and press the edges hardest. Let the adhesive build before the floor is washed. Then tell whoever cleans the store what is down there and how to clean around it.</p>
<p>Removal on a sound floor within the rated period is straightforward: lift a corner and pull back at 180 degrees, warming anything stubborn. Two situations make it hard. A highly sealed floor can bond far harder than expected, and an expired short-term graphic can shed its laminate and leave the adhesive behind. Both are arguments for specifying the right laminate at the start.</p>
<h2 style="color:#000000">What to send with the quote request</h2>
<p>A floor graphics quote with these seven lines comes back as a specification. Without them it comes back as a price per square foot that may not survive the install.</p>
<ul>
<li><strong>The floor.</strong> Material, and whether it is sealed, waxed, polished or coated. A photo helps more than a description.</li>
<li><strong>Indoor or outdoor,</strong> and if indoor, how far from an entrance.</li>
<li><strong>How long it stays down.</strong> Campaign length in weeks or months, so the laminate is chosen against it.</li>
<li><strong>Size and quantity,</strong> installed size per graphic and how many locations.</li>
<li><strong>Shape,</strong> rectangle, circle or contour cut, with a cut path if it is contour.</li>
<li><strong>Traffic and cleaning.</strong> Main aisle or side aisle, and what the cleaning equipment is.</li>
<li><strong>Who installs.</strong> Your team or the supplier&#8217;s, which decides how the graphics are packed and labeled.</li>
</ul>
<h2 style="color:#000000">Printing floor graphics in Rochester, NY</h2>
<p>TLF Graphics has printed labels, product decoration and signage in Rochester, NY for over 40 years. Floor graphics sit in the <a href="https://www.tlfgraphicsusa.com/retail-signage/">retail signage</a> line alongside POP displays, aisle signage, window graphics, counter mats, backlit signs, wall graphics and banners, which is the practical reason to buy them together: one file set, one color standard, one delivery.</p>
<p>The production side is wide-format and screen. The digital wide-format presses print rugged signage and banners on a range of substrates from flexible vinyl to rigid plastics, as described on the <a href="https://www.tlfgraphicsusa.com/industrial-durables/">industrial and durables</a> page. Screen printing covers outdoor-durable retail signage on rigid and flexible materials. Both methods are set out on the <a href="https://www.tlfgraphicsusa.com/print-technologies/">print technologies</a> page, and there is no minimum order quantity, so a four-store pilot is a real order rather than a favor.</p>
<p>If the floor graphic is part of a wider in-store program, the same decisions show up one surface over. The guides to <a href="https://www.tlfgraphicsusa.com/window-graphics-rochester/">window graphics</a> and <a href="https://www.tlfgraphicsusa.com/counter-mats-new-york-buyers-guide/">counter mats</a> cover the glass and the register, and the <a href="https://www.tlfgraphicsusa.com/trade-show-displays-rochester/">trade show displays</a> guide covers the version of this that travels.</p>
<p>Send the seven lines above and ask what the floor will take: <a href="https://www.tlfgraphicsusa.com/contact-us/">contact the team</a> and the answer comes back as a film, a laminate and a rating rather than a square-foot price.</p>
<h2 style="color:#000000">Frequently asked questions</h2>
<p><strong>What are retail floor graphics made of?</strong><br />
Most are two products laminated together: a printed vinyl film with a floor-grade adhesive, and a textured non-skid overlaminate on top that carries the slip-resistance rating and takes the abrasion. One-part systems exist, where the printed film is itself textured and rated. Ask which build you are being quoted, because in a two-part system the rating belongs to the laminate, not to the print underneath it.</p>
<p><strong>What floors can floor graphics be applied to?</strong><br />
Indoor films are specified for sealed concrete, terrazzo, vinyl, linoleum and ceramic tile, and some will hold on low-pile carpet. Outdoor films are built for unsealed concrete, brick and pavement. Marble and varnished wood are usually refusals: marble is porous enough to absorb adhesive and stain, and varnish can lift with the graphic. Waxed floors have to be stripped first.</p>
<p><strong>How long do floor graphics last?</strong><br />
The overlaminate sets the life, not the print. Short-term builds are commonly rated around three months and long-term builds around twelve, on the same base film. Outdoor floor graphics are typically rated for up to three months. Traffic volume, cleaning equipment and where the graphic sits will move the real number in either direction.</p>
<p><strong>Are floor graphics slippery?</strong><br />
A floor graphic built with a non-skid overlaminate is tested against a published slip-resistance standard. UL 410 covers the slip resistance of floor surface materials and sets a minimum average static coefficient of friction of 0.50 for the materials it covers. ANSI/NFSI B101.1 measures static friction on hard-surface walkways, and B101.3 measures wet dynamic friction. Ask for the test report and check whether it was run wet or dry.</p>
<p><strong>Do floor graphics damage the floor when removed?</strong><br />
They should not, on a sound floor within the rated period. The risks are a sealer or coating that had not fully cured when the graphic went down, a waxed floor that was not stripped, and leaving a short-term graphic in place for a year. Highly sealed floors can also bond harder than expected, which makes removal slow. Peel back a corner and pull at 180 degrees, warming stubborn areas.</p>
<p><strong>What size should a retail floor graphic be?</strong><br />
Size it to the decision it serves and to the aisle it sits in. Directional and threshold graphics are usually read while walking, so they need short copy at a size legible from several feet away. Aisle and endcap graphics are read while standing still and can carry more. Round the corners whatever the shape, and keep the graphic clear of thresholds, mats and door swings.</p>
<hr>
<p class="byline" style="color:#555"><em>Written by the team at TLF Graphics, an ISO 9001:2015 certified printer of industrial labels, product decoration and retail signage in Rochester, NY, printing floor graphics, window graphics, counter mats, POP displays and banners for retail environments. See the <a href="https://www.tlfgraphicsusa.com/retail-signage/">retail signage</a> line.</em></p>
]]></content:encoded>



			</item>
		<item>
		<title>Graphic Overlay Panels: A Specification Guide</title>
		<link>https://www.tlfgraphicsusa.com/graphic-overlay-panels/#utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=graphic-overlay-panels</link>

		<dc:creator><![CDATA[Howell Studios]]></dc:creator>
		<pubDate>Tue, 17 Nov 2026 10:34:54 +0000</pubDate>
				<category><![CDATA[Industry Expertise]]></category>
		<category><![CDATA[Label Printing]]></category>
		<category><![CDATA[equipment labels]]></category>
		<category><![CDATA[label compliance]]></category>
		<category><![CDATA[label printing]]></category>
		<category><![CDATA[New York]]></category>
		<guid isPermaLink="false">https://www.tlfgraphicsusa.com/?p=24319</guid>

					<description><![CDATA[What to specify on a graphic overlay drawing: polyester or polycarbonate, the hardcoat, second-surface printing, the adhesive, embossing and windows.]]></description>
										<content:encoded><![CDATA[<p>A graphic overlay is the printed film on the front of a control panel. It carries the legends, the icons, the brand mark and the windows the display reads through, and on a membrane switch it is also the surface a person presses several thousand times a year. It is the part of the machine the operator touches, and it is usually the part specified last.</p>
<p>That ordering causes most overlay failures. The enclosure gets designed, the switch gets designed, and the overlay gets ordered from a drawing that names a thickness and a color and nothing else. Then the panel goes out to a plant that wipes it down with isopropyl alcohol twice a shift, and in eight months the legends are ghosted and a corner has lifted.</p>
<p>This guide covers what belongs on an overlay drawing: the base film, the hardcoat, which surface the ink sits on, the adhesive, the embossing, and the windows. TLF Graphics screen prints overlay panels in Rochester, New York, alongside industrial labels and retail signage, and prints direct to aluminum panels and identification plates with UV LED inkjet.</p>
<h2>What a graphic overlay is, and what it is not</h2>
<p>An overlay is a printed, die-cut plastic film with an adhesive back. It mounts to a bezel, a metal faceplate or a membrane switch stack. Three things separate it from a label:</p>
<ul>
<li><strong>The ink is usually on the back of the film, not the front.</strong> The film becomes the wear surface and the graphics sit underneath it, protected. Suppliers call this second-surface or subsurface printing. One overlay converter describes it as buried graphics, with the ink protected between the material and the adhesive.</li>
<li><strong>It is a mechanical part.</strong> It has a thickness tolerance, a flatness requirement, a window position that must align with a display, and often an actuation area that flexes.</li>
<li><strong>The adhesive is selective.</strong> Adhesive is applied only where the overlay bonds. Key areas, vent holes and display windows stay adhesive-free so they can move or stay optically clear.</li>
</ul>
<p>If your part is a flat printed decal that identifies a machine and never moves, you want an industrial label, not an overlay. TLF&#8217;s <a href="https://www.tlfgraphicsusa.com/industrial-labeling/">industrial labeling page</a> covers that side, and the <a href="https://www.tlfgraphicsusa.com/equipment-labels-rochester/">equipment labels guide</a> goes into nameplates and rating plates specifically.</p>
<h2>Polyester or polycarbonate: decide this first</h2>
<p>Nearly every other decision follows from the base film. The two standard choices are polyester (PET) and polycarbonate (PC), and the industry&#8217;s own literature does not agree about them, which is worth knowing before a supplier tells you one is simply better.</p>
<p>Where the sources do agree:</p>
<ul>
<li><strong>Polyester resists more chemicals.</strong> Comparison tables from membrane switch manufacturers put PET ahead of PC across a broader range of agents. Polycarbonate is rated only fair against isopropyl alcohol and crazes on contact with MEK and aromatic solvents. If the panel gets wiped with a solvent, that is close to decisive.</li>
<li><strong>Polyester survives far more key presses.</strong> Published converter figures run to roughly 100,000 cycles for polycarbonate against 1 million for polyester. Some go further and report polycarbonate cracking over a tactile dome in as few as 50,000 operations, and recommend polyester for embossed keys above roughly 250,000 actuations. The numbers differ; the direction does not.</li>
<li><strong>Polycarbonate gives better optical clarity, a wider range of surface textures, deeper embossing and flame-rated grades.</strong> It also forms into three-dimensional shapes, which polyester does not do as readily.</li>
</ul>
<p>Where they contradict each other is abrasion. Some suppliers say polycarbonate is harder; others say hard-coated polyester is excellent and the ranking inverts once a coating is applied. Both can be true, because the hardcoat, not the base film, is doing the work.</p>
<p><strong>The practical rule.</strong> Specify hard-coated polyester where the panel is wiped down with chemicals or has mechanical keys with real cycle counts. Specify hard-coated polycarbonate where appearance, texture range, deep embossing or a flame rating is the priority, and the switching is capacitive or the overlay is decorative. One UK converter states this plainly: use polycarbonate for non-functional graphic overlays or capacitive switching, not for embossed mechanical keys.</p>
<div style="background:#f7f9fb;border:1px solid #e3e8ee;border-radius:10px;padding:24px 26px;margin:28px auto;max-width:720px;">
<p style="margin:0 0 6px;font-size:12px;letter-spacing:.08em;text-transform:uppercase;color:#0060a8;font-weight:700;">Base film at a glance</p>
<p style="margin:0 0 4px;font-size:20px;font-weight:700;color:#111;line-height:1.25;">Polyester and polycarbonate, by the figures suppliers publish</p>
<p style="margin:0 0 18px;font-size:14px;color:#555;line-height:1.5;">Vendor-published values. They vary between suppliers, so treat them as a starting point for your own qualification, not as a datasheet.</p>
<div style="display:flex;flex-wrap:wrap;gap:14px;">
<div style="flex:1 1 150px;background:#fff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;font-weight:700;line-height:1.1;color:#0060a8;">1,000,000</div>
<div style="font-size:13px;color:#444;line-height:1.4;margin-top:4px;">Actuations published for polyester over a tactile dome</div>
</div>
<div style="flex:1 1 150px;background:#fff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;font-weight:700;line-height:1.1;color:#0060a8;">100,000</div>
<div style="font-size:13px;color:#444;line-height:1.4;margin-top:4px;">Actuations published for polycarbonate in the same position</div>
</div>
<div style="flex:1 1 150px;background:#fff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;font-weight:700;line-height:1.1;color:#0060a8;">0.010&Prime;</div>
<div style="font-size:13px;color:#444;line-height:1.4;margin-top:4px;">Typical emboss height for a rail or pillow key</div>
</div>
<div style="flex:1 1 150px;background:#fff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;font-weight:700;line-height:1.1;color:#0060a8;">IP65</div>
<div style="font-size:13px;color:#444;line-height:1.4;margin-top:4px;">Ingress rating converters most often quote for a sealed panel</div>
</div>
</div>
<p style="margin:16px 0 0;font-size:12px;color:#777;line-height:1.5;">Sources: published material comparisons and membrane switch design guides from overlay converters and component suppliers; converter sealing specifications. Accessed November 2026.</p>
</div>
<h2>The hardcoat is the specification, not the film</h2>
<p>A bare film scuffs. The hardcoat is what stands between your legends and a decade of fingernails, gloves, grit and cleaning cloths, and the difference it makes is not marginal.</p>
<p>One patent example measured a 2 mm polycarbonate plate with no hardcoat at a haze change of 46.7% after a Taber abrasion test to ASTM D1044. The same material with a hardcoat came in around 5%. That is the gap between a panel that looks fogged after a year and one that does not.</p>
<p>So do not write &#8220;polycarbonate, textured&#8221; on the drawing and consider the material specified. Name the hardcoated product, and ask the supplier for two documents:</p>
<ul>
<li><strong>The hardcoat&#8217;s own chemical resistance chart.</strong> Hard-coated polyester films such as MacDermid Autotex AM publish one. Check it against the cleaners your customer actually uses, not against a generic category.</li>
<li><strong>A Taber or pencil hardness figure for the coated film.</strong> If a supplier quotes abrasion resistance without naming a test method, the number means nothing.</li>
</ul>
<p>Published haze figures for coated films sit in a narrow band and vendors disagree on which coated film wins, so qualify with a sample rather than a table.</p>
<h2>Second-surface printing, and what it costs you</h2>
<p>Printing on the reverse of the film puts the base material between the ink and the world. Nothing abrades the graphics because nothing touches them. It is the default for any overlay with a service life measured in years.</p>
<p>Three consequences follow, and all three belong on the drawing:</p>
<ul>
<li><strong>Artwork is mirrored.</strong> The print file reads backwards. Supply layered vector art and let the converter handle the reversal rather than flipping it yourself and hoping the registration survives.</li>
<li><strong>Color is read through the film.</strong> A textured or tinted film shifts the printed color. Approve a printed draw-down on the actual specified film, not a proof on paper.</li>
<li><strong>Ink opacity carries the design.</strong> Backlit legends and dead-front windows work by controlled opacity: dense enough to hide the lamp when off, open enough to read when lit. That is a print build, specified in layers, not a color swatch.</li>
</ul>
<p>Screen printing suits this work because it lays down a heavy, opaque ink film on rigid and flexible substrates, which is why TLF uses it for overlay panels and outdoor-durable industrial labels. The <a href="https://www.tlfgraphicsusa.com/print-technologies/">print technologies page</a> sets out when screen, digital and flexographic each get chosen.</p>
<h2>Adhesive: name the product and the surface</h2>
<p>Overlays are bonded with acrylic adhesive transfer tape. The common specification is a 3M 200MP acrylic, supplied as 467MP transfer tape. 3M&#8217;s own data sheet positions it for long-term bonding of subsurface-printed polycarbonate or polyester graphic nameplates and overlays to metal and high surface energy plastics, and for membrane switch overlays.</p>
<p>Figures from that data sheet and its distributors:</p>
<ul>
<li>Total tape thickness is listed at 0.06 mm, described as 2.3 mil, against a 2 mil nominal. Sources differ on which number to quote, so take it from the current data sheet rather than a catalog page.</li>
<li>The 200MP adhesive is reported to withstand up to 400&deg;F for short periods, and to hold up after humidity and hot and cold cycling.</li>
<li>3M states the adhesive is not adversely affected by outdoor exposure when it is covered by the nameplate or trim part, which is the normal overlay geometry.</li>
</ul>
<p>Two variants exist for a reason. 467MC carries a paper MicroChannel liner that lets air escape during application, which is how you stop bubbles and wrinkles on a large panel. 467MPF uses a polyester liner for rotary processing. If your assembly is manual and the panel is bigger than a hand span, ask about the channeled liner before you start scrapping parts.</p>
<p><strong>The surface matters as much as the tape.</strong> High surface energy substrates such as bare and painted metals bond well with these acrylics. Low surface energy plastics and some powder coats do not, and need a different adhesive family or a primer. Tell the converter what the overlay is sticking to, by material and finish. &#8220;Plastic&#8221; is not an answer.</p>
<h2>Embossing: rail, pillow and dome</h2>
<p>Embossing raises part of the overlay so an operator finds a key without looking. Three standard styles:</p>
<ul>
<li><strong>Rail embossing</strong> raises only the border of a key, leaving the center flat.</li>
<li><strong>Pillow embossing</strong> raises the whole key surface into a soft mound. The raised pad presses the dome underneath, which is where the key&#8217;s feel comes from. It works with metal or plastic domes.</li>
<li><strong>Dome embossing</strong> is the third style, a deeper, more pronounced form.</li>
</ul>
<p>Height is small. Design guides put typical embossing at 0.010&Prime;, with one guide giving a range of 0.25 to 0.50 mm, which is 0.010&Prime; to 0.020&Prime;. Deeper than that is a conversation about tooling and about whether the base film will take it, and it is the point at which polycarbonate&#8217;s willingness to emboss runs into its poor flex life.</p>
<p>Embossing is tooled, so it has a setup cost and a lead time that flat printing does not. Settle the key layout before the tool is cut.</p>
<h2>Windows, displays and the sealing claim</h2>
<p>Display windows are where overlays are most often rejected on arrival. Specify four things:</p>
<ul>
<li><strong>Position and tolerance</strong>, dimensioned from the same datum the enclosure uses. A window that is correct relative to the overlay&#8217;s own edge and wrong relative to the bezel is still wrong.</li>
<li><strong>Optical treatment</strong>: clear, tinted to raise contrast, or anti-glare. Anti-glare costs some sharpness; a tint costs some brightness. Pick against the lighting the machine lives in.</li>
<li><strong>Dead-front behavior</strong>, if indicators must disappear when unlit.</li>
<li><strong>Adhesive-free area</strong> behind the window, so there is nothing in the optical path.</li>
</ul>
<p>On sealing, read the claims carefully. Converters commonly quote IP65 or IP67 for sealed membrane panels and offer higher ratings to a customer drawing, with some stating their perimeter seals meet IP65 and their higher builds meet NEMA 4X. An older design guide describes a watertight NEMA 4 perimeter seal for an overlay set into a recessed panel. These are vendor statements about a build, not independent certifications of your finished product. If your machine has to carry a rating, the enclosure and the overlay get tested together, and the overlay drawing should say which seal design it assumes.</p>
<p>One more item for the drawing: flammability. Where a panel area carries a regulated mark, the rating is recorded against the base material, so the film grade is part of the compliance record. TLF is UL Mark Authorized, and the <a href="https://www.tlfgraphicsusa.com/ul-labels-rochester-ny/">UL labels guide</a> explains what that authorization covers on the label side.</p>
<h2>What to send a supplier so the first article is right</h2>
<p>A quotable overlay package has seven items. Missing any one of them is what turns a four-week part into a ten-week part.</p>
<ul>
<li><strong>Layered vector artwork</strong> with fonts outlined, printed colors separated, and die lines, emboss areas and adhesive-free zones on their own layers. TLF&#8217;s <a href="https://www.tlfgraphicsusa.com/art-resources/">art resources page</a> has the file guidelines.</li>
<li><strong>A dimensioned drawing</strong> with overall size, window positions, hole positions, radii and tolerances, dimensioned from the mating part&#8217;s datum.</li>
<li><strong>The base film and hardcoat</strong> named as a product, with the texture called out.</li>
<li><strong>The adhesive</strong> named as a product, with the mating surface&#8217;s material and finish stated.</li>
<li><strong>Color targets</strong> as named references, plus a note that approval is on a draw-down on the specified film.</li>
<li><strong>The environment</strong>: cleaning agents and frequency, temperature range, UV exposure, and expected actuations per key per year.</li>
<li><strong>Quantity and release schedule</strong>, because the print method follows the run. Screen printing suits medium to large volumes and outdoor durability; digital suits small to medium quantities with versioning; flexographic suits large quantities on roll.</li>
</ul>
<p>TLF Graphics has been producing durable printed labels for industrial and durable goods manufacturers for over 40 years, is an ISO 9001:2015 certified company, is UL Mark Authorized, and has no minimum order quantity. The applications on the <a href="https://www.tlfgraphicsusa.com/industrial-durables/">industrial and durables page</a> run from electronics and handheld devices to HVAC, heavy equipment, medical equipment and fitness equipment, which is the same spread of panels that carry overlays.</p>
<h2>Frequently asked questions</h2>
<p><strong>Is a graphic overlay the same thing as a membrane switch?</strong><br />
No. The overlay is the printed top layer. A membrane switch is the full stack underneath it: spacer, circuit layers, domes and a tail. You can buy an overlay on its own to mount over a separate switch or a bezel, and many panels are exactly that.</p>
<p><strong>Polyester or polycarbonate for a panel that gets cleaned with alcohol?</strong><br />
Polyester, hard-coated. Published comparisons rate polycarbonate only fair against isopropyl alcohol, and it crazes with MEK and aromatic solvents. Then check the specific hardcoat&#8217;s chemical chart against the actual cleaner.</p>
<p><strong>How many key presses will an overlay take?</strong><br />
It depends on the film. Vendors publish about 100,000 cycles for polycarbonate over a dome and about 1 million for polyester, and some report polycarbonate cracking far earlier than that. Give your supplier an actuations-per-year figure and a required service life rather than asking for a maximum.</p>
<p><strong>Why is my overlay printed backwards?</strong><br />
It is printed second surface, on the reverse of the film, so the film protects the ink. The artwork is mirrored during prepress. This is normal and it is what makes the graphics last.</p>
<p><strong>Can the overlay carry variable data, like serial numbers?</strong><br />
Serialization, barcodes and sequential numbering are standard on TLF&#8217;s variable data labels. On an overlay, a serialized area is usually handled as a separate printed element or a companion label, because the overlay itself is a tooled, repeating part. Ask when you quote.</p>
<p><strong>Can you print directly onto the panel instead of applying an overlay?</strong><br />
Sometimes. TLF prints direct to object with UV LED inkjet onto aluminum industrial panels, identification plates and other rigid substrates. It removes the adhesive and the die from the problem, though it does not give you embossing or second-surface protection. It is worth asking about for flat metal faceplates.</p>
<hr />
<p>To spec an overlay panel for your equipment, send the drawing and the artwork to <a href="https://www.tlfgraphicsusa.com/contact-us/">TLF Graphics in Rochester, New York</a>, with the cleaning agents and the expected actuations noted. That is enough to get a real quote and a first article that fits.</p>
]]></content:encoded>



			</item>
		<item>
		<title>POP Displays in Rochester, NY: A Retail Buyer&#8217;s Guide</title>
		<link>https://www.tlfgraphicsusa.com/pop-displays-rochester/#utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=pop-displays-rochester</link>

		<dc:creator><![CDATA[Howell Studios]]></dc:creator>
		<pubDate>Mon, 16 Nov 2026 07:53:36 +0000</pubDate>
				<category><![CDATA[Point of Purchase]]></category>
		<category><![CDATA[point of purchase]]></category>
		<category><![CDATA[POP displays]]></category>
		<category><![CDATA[retail signage]]></category>
		<category><![CDATA[Rochester]]></category>
		<guid isPermaLink="false">https://www.tlfgraphicsusa.com/?p=24298</guid>

					<description><![CDATA[POP displays decide which product a Rochester, NY shopper picks up. Compare display formats, materials, print methods, and how to source them locally.]]></description>
										<content:encoded><![CDATA[<p><script type="application/ld+json">
{
  "@context": "https://schema.org",
  "@graph": [
    {
      "@type": "BlogPosting",
      "headline": "POP Displays in Rochester, NY: A Retail Buyer's Guide",
      "description": "A practical guide to point-of-purchase displays for Rochester retailers and brands: formats, materials, print methods, and local sourcing.",
      "datePublished": "2026-11-06",
      "dateModified": "2026-11-06",
      "inLanguage": "en-US",
      "author": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/"
      },
      "publisher": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/"
      },
      "mainEntityOfPage": {
        "@type": "WebPage",
        "@id": "https://www.tlfgraphicsusa.com/pop-displays-rochester/"
      },
      "about": "Point-of-purchase (POP) displays",
      "areaServed": {
        "@type": "City",
        "name": "Rochester, NY"
      }
    },
    {
      "@type": "FAQPage",
      "mainEntity": [
        {
          "@type": "Question",
          "name": "What is the difference between POP and POS displays?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Point-of-purchase (POP) is the broad category of any in-store display that promotes a product where shopping happens, anywhere on the floor or at the shelf. Point-of-sale (POS) is the narrower subset positioned right at the register or checkout. Every POS display is a POP display, but not every POP display sits at the point of sale."
          }
        },
        {
          "@type": "Question",
          "name": "How long do POP displays last?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "It depends on material and build. Temporary corrugated displays are designed for promotions that run a few weeks. Semi-permanent foam board or styrene units last through a season, and permanent rigid plastic or composite fixtures are built to hold up for a year or more in high-traffic zones."
          }
        },
        {
          "@type": "Question",
          "name": "Should I order a POP display or a counter mat?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Order a display when the product needs to be held, stacked or merchandised, and a counter mat when the goal is to brand the transaction surface the shopper is already looking at. Many checkout programs run both: a counter display that holds the product, sitting on a printed mat that carries the offer."
          }
        },
        {
          "@type": "Question",
          "name": "What file format should I send for a POP display?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Send print-ready vector artwork or high-resolution raster files with bleed, and supply your brand colors as target values so the print can be matched consistently across the run and any reorders. A local producer can review your files before production to flag issues early."
          }
        },
        {
          "@type": "Question",
          "name": "Can you match our exact brand colors across a reorder?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "TLF Graphics lists color integrity and repeatability as a property of its digital printing, which is what lets a reordered display match the original run rather than drift. Supplying defined brand color targets with your art makes that matching reliable."
          }
        },
        {
          "@type": "Question",
          "name": "Do you only serve Rochester, or do you ship nationally?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "TLF Graphics produces from two facilities on Metro Park in Rochester, NY, serves the local market, and also prints and ships nationally. Local clients gain faster proofing and reorders, while national clients get the same production capability."
          }
        }
      ]
    }
  ]
}
</script></p>
<div class="author-box" style="background:#f6f6f6;border:1px solid #e2e2e2;border-radius:10px;padding:16px 20px;color:#1a1a1a">
<p style="color:#1a1a1a;margin:.2em 0"><strong style="color:#1a1a1a">Key Takeaways</strong></p>
<ul style="color:#1a1a1a;margin:.4em 0 0">
<li style="color:#1a1a1a">A point-of-purchase (POP) display is a branded in-store structure, built to catch a shopper at the shelf, endcap, or checkout and move one specific product.</li>
<li style="color:#1a1a1a">Most shoppers do not walk in with the decision already made, which is the opening a display is designed to use.</li>
<li style="color:#1a1a1a">The common formats are counter displays, floor displays, endcaps, dump bins, standees, pallet displays, and shelf and aisle signage. Match the format to the product and to the space the retailer will actually give you.</li>
<li style="color:#1a1a1a">Material and print method decide how long a display survives. Temporary corrugated promotions and semi-permanent styrene or rigid units are printed and finished differently.</li>
<li style="color:#1a1a1a">A Rochester, NY producer that prints the graphics and sources the display hardware shortens proofing, shipping, and reorder cycles.</li>
</ul>
</div>
<p>Point-of-purchase displays are the quiet closers of retail. Shoppers walk an aisle with a loose plan, and the display that interrupts that walk with a clear offer is often what decides which brand lands in the cart. This guide explains what POP displays are, the formats worth knowing, the materials and print methods behind them, how they differ from the other retail graphics you might be weighing, and how a Rochester, NY buyer can source them without the delays of a distant vendor.</p>
<h2 style="color:#000000">What are POP displays, and why do they matter for Rochester retailers?</h2>
<p>A point-of-purchase (POP) display is a branded fixture placed where a purchase decision happens: at the shelf, on an endcap, beside the register, or in a promotional floor spot. The category exists because the decision is still made inside the store.</p>
<p>POPAI&#8217;s 2012 Shopper Engagement Study, the long-cited benchmark for this question, put the in-store decision rate at 76 percent, which it called an all-time high, and <a href="https://www.convenience.org/stay-current/news/2012/nd0510124">found that nearly one in six brand purchases are made when a display for that brand is present in store</a>. More recent work points the same way. In a <a href="https://www.frankmayer.com/ebook/2026-in-store-retail-display-influence-report/">January 2026 survey of 1,119 U.S. shoppers</a> commissioned by display maker Frank Mayer, nearly three in four said their purchasing decisions are not fully determined before they enter a store, and nine out of ten said they sometimes, usually or always buy something they did not intend to buy.</p>
<p>A display is one of the few tools a brand controls at that moment. It does not just decorate an aisle. It changes which product a shopper notices and which one lands in the cart.</p>
<p>TLF Graphics sits inside this exact category. Our <a href="https://www.tlfgraphicsusa.com/retail-signage/">retail signage</a> work covers POP and POS displays, aisle signage, window graphics, counter mats, backlit signs, floor graphics, wall graphics, and banners. As that page puts it, compelling retail signage and messaging will directly impact in-store traffic flow, which is the entire job of a POP display.</p>
<h2 style="color:#000000">Which POP display formats should Rochester brands consider?</h2>
<p>Start with the format, because it dictates everything downstream. The Frank Mayer survey found that 76 percent of shoppers have discovered a new product or brand from seeing it on a retail display. The POPAI study found that 56 percent of shoppers recalled seeing in-store displays at all, and that endcap and freestanding displays were recalled most often. Between those two numbers sits the real decision: the format you pick determines whether your display gets remembered or walked past.</p>
<p>Here are the formats most retailers and brands use, and what each one is good for:</p>
<table>
<thead>
<tr>
<th>Format</th>
<th>Where it sits</th>
<th>Best for</th>
</tr>
</thead>
<tbody>
<tr>
<td>Counter display</td>
<td>On the checkout counter</td>
<td>Impulse items, small SKUs, samples</td>
</tr>
<tr>
<td>Floor display</td>
<td>Freestanding on the sales floor</td>
<td>A featured product or a seasonal push</td>
</tr>
<tr>
<td>Endcap</td>
<td>The end of an aisle</td>
<td>High-visibility promotions and launches</td>
</tr>
<tr>
<td>Dump bin</td>
<td>Open floor bin</td>
<td>Bulk, clearance, and grab-and-go items</td>
</tr>
<tr>

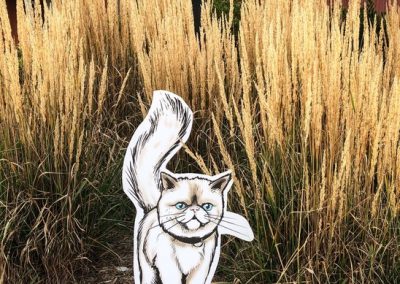

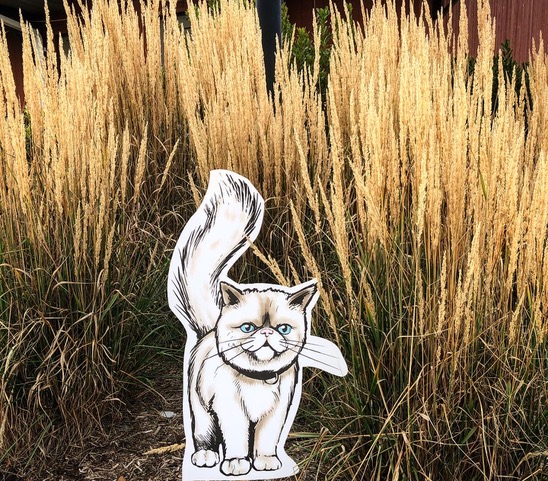

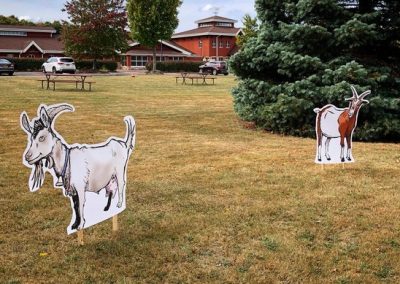

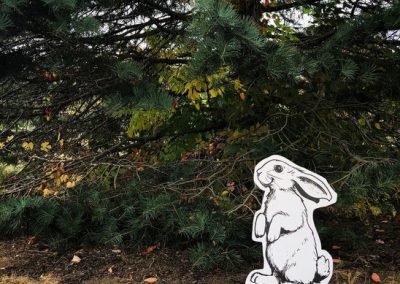

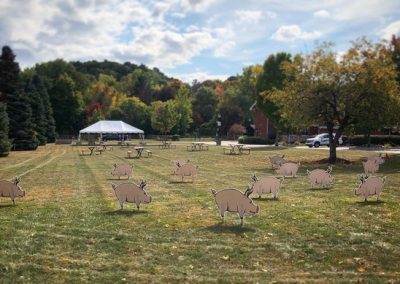

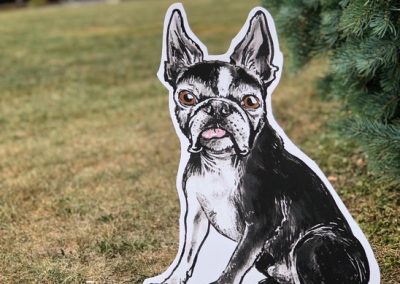

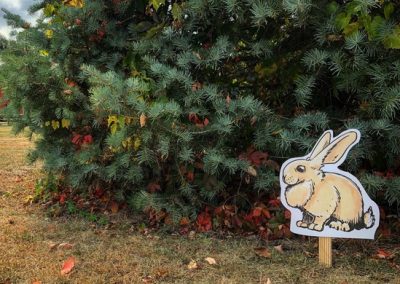

<td>Standee or cutout</td>
<td>Entrance or aisle</td>
<td>Brand presence and campaign tie-ins</td>
</tr>
<tr>
<td>Pallet display</td>
<td>Club and big-box floors</td>
<td>Large-volume, pre-packed quantities</td>
</tr>
<tr>
<td>Shelf and aisle signage</td>
<td>On the shelf edge</td>
<td>Price, callouts, and wayfinding at the shelf</td>
</tr>
</tbody>
</table>
<p>If you are choosing between a few of these, let the product decide. A tall, light SKU that sells on impulse belongs on a counter display. A heavy case-packed item belongs on a pallet or in a dump bin. A launch you want associated with a whole category belongs on an endcap, if the retailer will sell you one.</p>
<div style="background:#f7f9fb;border:1px solid #e3e8ee;border-radius:10px;padding:24px;margin:28px auto;">
<p style="margin:0 0 4px;font-size:13px;letter-spacing:.08em;text-transform:uppercase;color:#0060a8;font-weight:700;">Shopper research</p>
<p style="margin:0 0 4px;font-size:20px;line-height:1.3;font-weight:700;color:#111111;">How much is still decided in the aisle</p>
<p style="margin:0 0 18px;font-size:14px;line-height:1.5;color:#41505f;">Share of 1,119 U.S. shoppers surveyed in January 2026.</p>
<div role="img" aria-label="Bar chart of four findings from a January 2026 survey of 1,119 U.S. shoppers: 90 percent buy items they did not plan to, 76 percent found a new product on a display, 75 percent arrive without a fixed decision, and 63 percent say a display swayed a close choice.">
<div style="margin:0 0 14px;">
<div style="font-size:14px;line-height:1.4;color:#111111;margin:0 0 4px;">Buy items they did not plan to</div>
<div style="display:flex;align-items:center;gap:8px;">
<div style="flex:0 0 auto;width:calc((100% - 52px) * 1.00);height:22px;background:#0060a8;border-radius:0 4px 4px 0;"></div>
<div style="font-size:14px;font-weight:700;color:#111111;">90%</div>
</div>
</div>
<div style="margin:0 0 14px;">
<div style="font-size:14px;line-height:1.4;color:#111111;margin:0 0 4px;">Found a new product on a display</div>
<div style="display:flex;align-items:center;gap:8px;">
<div style="flex:0 0 auto;width:calc((100% - 52px) * 0.84);height:22px;background:#0060a8;border-radius:0 4px 4px 0;"></div>
<div style="font-size:14px;font-weight:700;color:#111111;">76%</div>
</div>
</div>
<div style="margin:0 0 14px;">
<div style="font-size:14px;line-height:1.4;color:#111111;margin:0 0 4px;">Arrive without a fixed decision</div>
<div style="display:flex;align-items:center;gap:8px;">
<div style="flex:0 0 auto;width:calc((100% - 52px) * 0.83);height:22px;background:#0060a8;border-radius:0 4px 4px 0;"></div>
<div style="font-size:14px;font-weight:700;color:#111111;">75%</div>
</div>
</div>
<div style="margin:0 0 14px;">
<div style="font-size:14px;line-height:1.4;color:#111111;margin:0 0 4px;">Display swayed a close choice</div>
<div style="display:flex;align-items:center;gap:8px;">
<div style="flex:0 0 auto;width:calc((100% - 52px) * 0.70);height:22px;background:#0060a8;border-radius:0 4px 4px 0;"></div>
<div style="font-size:14px;font-weight:700;color:#111111;">63%</div>
</div>
</div>
</div>
<p style="margin:16px 0 0;font-size:13px;line-height:1.5;color:#41505f;">Source: Frank Mayer and Associates, 2026 In-Store Retail Display Influence Report, fielded January 2026. The 90 and 75 percent figures are reported as &#8220;nine out of ten&#8221; and &#8220;nearly three in four.&#8221;</p>
</div>
<h2 style="color:#000000">What materials and print methods go into a POP display?</h2>
<p>The material is a durability decision, and it should follow how long the display needs to last. That one-in-six purchase lift only holds if the display survives the aisle, so material and print method are not cosmetic choices. They decide whether a unit is still selling in week three or sitting scuffed in a stockroom.</p>
<p>Common POP substrates fall into a few groups:</p>
<ul>
<li><strong>Corrugated board</strong> for temporary promotions that run a few weeks. Light, inexpensive, and fully printable.</li>
<li><strong>Foam board and styrene</strong> for semi-permanent units that need more rigidity and a cleaner face.</li>
<li><strong>Rigid plastics and composite panels</strong> for permanent fixtures and high-traffic zones that take abuse.</li>
</ul>
<p>Print method matters as much as the board. At TLF Graphics, <a href="https://www.tlfgraphicsusa.com/print-technologies/">digital printing</a> is built for extremely high quality regardless of quantity, with color integrity and repeatability and unlimited versions and variable data, which suits short-run and regional retail programs and any display that has to go out in several market-specific versions. Screen printing produces outdoor-durable printed products on rigid and thick substrates, including overlay panels, for units that take handling. JetFX embellishments add digital foiling, digital tactile screening for raised effects, spot varnishing in matte or gloss, and digital holograms, with no tooling, where a display needs to look premium on the shelf.</p>
<p>Those same presses print on films, foils, paper, plastics and pressure-sensitive materials, so the product label, the shelf sign and the display face can be produced to the same color target instead of drifting apart across three suppliers.</p>
<p>A practical note on sourcing: TLF prints the graphic faces and signage, and also carries displays, banner stands, table covers, tents and trade show products through its <a href="https://tlfgraphics.displaycity.com/">online display store</a>. Pairing the printed graphics and the structure through one producer avoids the mismatch that happens when artwork and hardware come from two vendors on two timelines.</p>
<h2 style="color:#000000">POP display, counter mat, or window graphic?</h2>
<p>These three get specified together and solve different problems, so it is worth being clear about which one your campaign actually needs.</p>
<p>A <strong>POP display</strong> holds product. It is a structure, it occupies floor or counter space the retailer has to grant you, and it is the only one of the three that merchandises the item as well as advertising it.</p>
<p>A <strong>counter mat</strong> brands the transaction surface a shopper is already looking down at while they pay. It takes no extra footprint, which is often why a store says yes to it. Our <a href="https://www.tlfgraphicsusa.com/custom-counter-mats-in-new-york-a-point-of-purchase-guide/">point-of-purchase counter mat guide</a> covers how that surface is used, and the <a href="https://www.tlfgraphicsusa.com/counter-mats-new-york-buyers-guide/">counter mats buyer&#8217;s guide</a> covers specifying and ordering them.</p>
<p>A <strong>window graphic</strong> works before the shopper is inside, converting passing traffic into a visit. Our <a href="https://www.tlfgraphicsusa.com/window-graphics-rochester/">window graphics guide</a> covers films, perforated vinyl and coverage rules for storefront glass.</p>
<p>And if the setting is a show floor or a booth rather than a store aisle, that is portable exhibit hardware, not retail POP. Our <a href="https://www.tlfgraphicsusa.com/trade-show-displays-rochester/">trade show displays guide</a> covers that build instead.</p>
<h2 style="color:#000000">How do you design a POP display retailers will actually place?</h2>
<p>Design for the retailer&#8217;s rules first, not just your brand. In the January 2026 Frank Mayer survey, 63 percent of shoppers said retail displays have influenced their choice when comparing similar products or brands. You only win that comparison when the display reads clearly and, just as important, when the store actually agrees to set it, which depends on fit and compliance.</p>
<p>Work through this checklist before you print:</p>
<ul>
<li><strong>Dimensions and planogram fit.</strong> Confirm the footprint, height, and shelf or endcap space the retailer allows. A display that does not fit the planogram does not get placed.</li>
<li><strong>Weight and stocking.</strong> The unit must hold the product safely and be simple for store staff to assemble and restock.</li>
<li><strong>Message hierarchy.</strong> Lead with one offer or benefit readable from several feet away. Save detail for arm&#8217;s length.</li>
<li><strong>Brand accuracy.</strong> Supply brand colors as target values so the print can be matched across the run and across reorders.</li>
<li><strong>Lifespan.</strong> Decide temporary versus permanent up front, because it changes the board, the coating, and the budget.</li>
<li><strong>File setup.</strong> Provide print-ready vector art or high-resolution files with bleed so the graphics reproduce cleanly at display scale.</li>
<li><strong>Version count.</strong> If different stores or regions need different offers, say so before the job is quoted. Versioning is a digital press decision, not a late change.</li>
</ul>
<p>Getting these right is what separates a display that ships and sits in a back room from one that earns floor space and sells.</p>
<h2 style="color:#000000">How do you source POP displays in Rochester, NY?</h2>
<p>Source locally when speed and reorders matter. TLF Graphics produces from two facilities on Metro Park in Rochester, a corporate headquarters at 235 Metro Park and an operations facility at 145 Metro Park, both in Rochester, NY 14623, serving the greater Rochester market and shipping nationally.</p>
<p>Behind those addresses is the plant: over 75 different printing and finishing devices across digital, flexographic, screen and direct-to-object methods. TLF is an ISO 9001:2015 certified company and is listed under UL&#8217;s Authorized Label Suppliers Program as PGAA.LP1575, so the same quality system that governs our industrial labels governs retail graphics. The work also goes out the door and onto the wall: our print and installation projects include the graphics produced for the Atlantic Hockey Association championship, and the <a href="https://www.tlfgraphicsusa.com/gallery/">gallery</a> shows the presses and finishing lines the work runs on.</p>
<p>A local producer shortens three cycles that distant vendors stretch out. Proofing, because you can review a physical sample quickly rather than waiting on freight. Production, because digital runs scale from a handful of units to large volumes without new tooling. And reordering, because a display that works can be rerun against the original color target instead of being redesigned.</p>
<p>If you also decorate the product itself, <a href="https://www.tlfgraphicsusa.com/product-decoration/">product decoration</a> and the display can be quoted together, which is the simplest way to keep a brand color consistent from the bottle to the fixture it sits on.</p>
<p>When you are ready to scope a POP display program, <a href="https://www.tlfgraphicsusa.com/contact-us/">contact TLF Graphics</a> with your product, your target retailers, and your timeline, and we will help you match format, material, and print method to the job.</p>
<h2 style="color:#000000">Frequently Asked Questions</h2>
<p><strong>What is the difference between POP and POS displays?</strong><br />
Point-of-purchase (POP) is the broad category of any in-store display that promotes a product where shopping happens, anywhere on the floor or at the shelf. Point-of-sale (POS) is the narrower subset positioned right at the register or checkout. Every POS display is a POP display, but not every POP display sits at the point of sale.</p>
<p><strong>How long do POP displays last?</strong><br />
It depends on material and build. Temporary corrugated displays are designed for promotions that run a few weeks. Semi-permanent foam board or styrene units last through a season, and permanent rigid plastic or composite fixtures are built to hold up for a year or more in high-traffic zones.</p>
<p><strong>Should I order a POP display or a counter mat?</strong><br />
Order a display when the product needs to be held, stacked or merchandised, and a counter mat when the goal is to brand the transaction surface the shopper is already looking at. Many checkout programs run both: a counter display that holds the product, sitting on a printed mat that carries the offer.</p>
<p><strong>What file format should I send for a POP display?</strong><br />
Send print-ready vector artwork or high-resolution raster files with bleed, and supply your brand colors as target values so the print can be matched consistently across the run and any reorders. A local producer can review your files before production to flag issues early.</p>
<p><strong>Can you match our exact brand colors across a reorder?</strong><br />
TLF Graphics lists color integrity and repeatability as a property of its digital printing, which is what lets a reordered display match the original run rather than drift. Supplying defined brand color targets with your art makes that matching reliable.</p>
<p><strong>Do you only serve Rochester, or do you ship nationally?</strong><br />
TLF Graphics produces from two facilities on Metro Park in Rochester, NY, serves the local market, and also prints and ships nationally. Local clients gain faster proofing and reorders, while national clients get the same production capability.</p>
<hr>
<p class="byline" style="color:#555"><em>Written by the team at TLF Graphics, an ISO 9001:2015 certified, UL Authorized Label Supplier producing labels and retail graphics from two facilities on Metro Park in Rochester, NY. Learn more <a href="https://www.tlfgraphicsusa.com/about-us/">about TLF Graphics</a>.</em></p>
]]></content:encoded>



			</item>
		<item>
		<title>Direct Thermal vs Thermal Transfer Labels</title>
		<link>https://www.tlfgraphicsusa.com/direct-thermal-vs-thermal-transfer-labels/#utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=direct-thermal-vs-thermal-transfer-labels</link>

		<dc:creator><![CDATA[Howell Studios]]></dc:creator>
		<pubDate>Mon, 09 Nov 2026 14:15:00 +0000</pubDate>
				<category><![CDATA[Label Printing]]></category>
		<category><![CDATA[equipment labels]]></category>
		<category><![CDATA[label printing]]></category>
		<guid isPermaLink="false">https://www.tlfgraphicsusa.com/?p=24310</guid>

					<description><![CDATA[How direct thermal and thermal transfer labels differ, which ribbon grade matches which facestock, and what to specify before printing labels in house.]]></description>
										<content:encoded><![CDATA[<p><script type="application/ld+json">
{
  "@context": "https://schema.org",
  "@graph": [
    {
      "@type": "BlogPosting",
      "headline": "Direct Thermal vs Thermal Transfer Labels",
      "description": "How direct thermal and thermal transfer labels differ, which ribbon grade matches which facestock, and what to specify before printing labels in house.",
      "datePublished": "2026-11-09",
      "dateModified": "2026-11-09",
      "inLanguage": "en-US",
      "author": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/"
      },
      "publisher": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/"
      },
      "mainEntityOfPage": {
        "@type": "WebPage",
        "@id": "https://www.tlfgraphicsusa.com/direct-thermal-vs-thermal-transfer-labels/"
      },
      "about": "Direct thermal and thermal transfer label printing specification"
    },
    {
      "@type": "FAQPage",
      "mainEntity": [
        {
          "@type": "Question",
          "name": "What is the difference between direct thermal and thermal transfer labels?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Direct thermal labels carry a heat-sensitive coating that darkens under the printhead, so they print without a ribbon. Thermal transfer printing uses a ribbon, and the printhead melts ink from that ribbon onto the label. The direct thermal image is the label's own surface and fades with heat, sunlight and abrasion. The thermal transfer image is a bonded layer, which is what lets it last."
          }
        },
        {
          "@type": "Question",
          "name": "How long does a direct thermal label last?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Expect months rather than years, and far less than that if the label sits in sunlight, near heat, in a washdown area or where it rubs. Published shelf-life figures vary by material, so treat them as a starting point and test the stock where the label will actually live. If it has to be read after it leaves your building, specify thermal transfer."
          }
        },
        {
          "@type": "Question",
          "name": "Which ribbon do I need for polyester labels?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Resin. Polyester and other synthetic films need the resin grade to anchor properly and to deliver the heat, abrasion, solvent and UV resistance those labels are usually bought for. Wax belongs on uncoated and matte paper, and wax/resin on coated paper and some synthetics."
          }
        },
        {
          "@type": "Question",
          "name": "Can one printer do both methods?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Many thermal transfer printers can also run in direct thermal mode, so the stock loaded decides the method rather than the machine. Direct thermal only printers cannot work the other way, because they have no ribbon path. Confirm the mode on the model before you plan around it."
          }
        },
        {
          "@type": "Question",
          "name": "Do I need special labels for a thermal transfer printer?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Yes, and matching them is the main skill. The facestock has to suit the ribbon grade, the die size and roll geometry have to fit the printer, and the sensing method has to match how the printer finds each label. A ribbon-and-stock pair that is matched prints a sharper code than either component does on its own."
          }
        },
        {
          "@type": "Question",
          "name": "Should I print labels in house or buy them printed?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Split it by what the content does. Content that changes every shift and only has to survive the building belongs on a printer at the line. Content that is fixed, regulated or has to last the life of the product belongs with a converter who can put it on the right material with the right process. Most manufacturers do both, from one supplier, so the stock, ribbon and converted labels are specified against each other."
          }
        }
      ]
    }
  ]
}
</script></p>
<div class="author-box" style="background:#f6f6f6;border:1px solid #e2e2e2;border-radius:10px;padding:16px 20px;color:#1a1a1a">
<p style="color:#1a1a1a;margin:.2em 0"><strong style="color:#1a1a1a">Key Takeaways</strong></p>
<ul style="color:#1a1a1a;margin:.4em 0 0">
<li style="color:#1a1a1a">Direct thermal prints with no ribbon. The image lives in the label&#8217;s own coating, and heat, sunlight and abrasion take it away again.</li>
<li style="color:#1a1a1a">Thermal transfer melts a ribbon onto the label. The image sits in a layer bonded to the facestock, which is why it survives the product&#8217;s service life.</li>
<li style="color:#1a1a1a">The ribbon grade follows the facestock: wax on paper, wax/resin on coated paper and some synthetics, resin on polyester and polypropylene.</li>
<li style="color:#1a1a1a">Blank stock is half the specification. Facestock, adhesive, die size, roll diameter, core size and unwind direction all have to match the printer and the applicator.</li>
<li style="color:#1a1a1a">Content that is fixed, regulated or has to last the life of the product belongs with a converter, not a printer at the line.</li>
</ul>
</div>
<p>Two printers can sit on the same bench, print the same barcode on the same size label, and only one of those labels will still scan next summer. The difference is not the printer. It is whether the image was burned into the label&#8217;s own coating or melted onto it from a ribbon.</p>
<p>That single choice decides the stock you buy, the consumables you keep on a shelf, and how long the label stays readable. This is the specification sheet for making it: how each method marks a label, which jobs suit which, how to match a ribbon grade to a facestock, what else belongs in the stock spec, and the point where printing at the line stops being the right answer.</p>
<h2 style="color:#000000">The two ways a thermal printer makes a mark</h2>
<p><strong>Direct thermal.</strong> The facestock carries a heat-sensitive coating. The printhead heats small areas of it and those areas darken. There is no ribbon, so there is one consumable instead of two and nothing to change mid-run. The image is the surface of the label, which is also the weakness: anything that heats, scuffs or sun-bleaches that surface erases the barcode with it.</p>
<p><strong>Thermal transfer.</strong> A ribbon runs between the printhead and the label. The head melts ink from the ribbon onto the facestock, and the image ends up as a layer bonded to the stock rather than a change in the stock itself. That layer is what resists heat, light, abrasion and solvents, and it is the only way to print on a synthetic film, which has no thermal coating to darken.</p>
<p>Everything below follows from that one difference.</p>
<h2 style="color:#000000">When direct thermal is the right call</h2>
<p>Direct thermal suits labels with a short, sheltered life indoors:</p>
<ul>
<li>Shipping and carrier labels that are scanned a handful of times and then thrown away with the box.</li>
<li>Pick, putaway and bin labels that change as often as the inventory does.</li>
<li>Work-in-process and batch tickets that follow a job across the plant and stop at the dock.</li>
<li>Date-coded cartons leaving the building this week.</li>
</ul>
<p>The appeal is real. No ribbon to stock, to match or to run out of at 2 a.m., and nobody has to decide which grade goes on which printer.</p>
<p>The failures are just as predictable. A direct thermal label fades on its own in months rather than years, and it fades much faster than that on a sunlit rack, near an oven or a motor, in a steam-washed room, or in a tote where it rubs against everything else. Solvents and the plasticizers in some films and gloves will lift it. If a label has to be legible after the truck leaves, this is the wrong method.</p>
<h2 style="color:#000000">When thermal transfer earns its ribbon</h2>
<p>Thermal transfer is the method for anything that has to be read later by someone who was not there when it was printed:</p>
<ul>
<li>Asset tags and serialized equipment identification, where the scan has to work years after the tag went on. Our guide to <a href="https://www.tlfgraphicsusa.com/asset-tags-rochester/">asset tags in Rochester, NY</a> covers the numbering and data side of that.</li>
<li><a href="https://www.tlfgraphicsusa.com/equipment-labels-rochester/">Equipment labels</a>, rating plates and control panel legends that live on a machine for its service life.</li>
<li>GHS chemical labels and drum identification, which face the contents of the drum as well as the weather.</li>
<li>Cold storage, outdoor yards, and anything that gets washed down.</li>
<li>Every label printed on a synthetic facestock, because polyester and polypropylene cannot be marked by heat alone.</li>
</ul>
<p>The cost argument tends to be made on consumables and lost on rework. A ribbon is a line item. Re-tagging a plant&#8217;s worth of machines because the barcodes stopped scanning is a project.</p>
<h2 style="color:#000000">Match the ribbon grade to the facestock</h2>
<p>Thermal transfer ribbons come in three grades, and the grade is chosen by what the label is made of before it is chosen by how tough the environment is.</p>
<table>
<tbody>
<tr>
<td><strong>Ribbon grade</strong></td>
<td><strong>Prints well on</strong></td>
<td><strong>Typical labels</strong></td>
<td><strong>Resistance</strong></td>
</tr>
<tr>
<td>Wax</td>
<td>Uncoated and matte paper</td>
<td>Shipping, pick and putaway, indoor cartons</td>
<td>Lowest. Scratches and smudges under friction</td>
</tr>
<tr>
<td>Wax/resin</td>
<td>Coated and semi-gloss paper, some synthetic films</td>
<td>Product and retail labels that are handled often</td>
<td>Moderate. Noticeably better smear and scratch resistance than wax</td>
</tr>
<tr>
<td>Resin</td>
<td>Polyester, polypropylene and other synthetic films</td>
<td>Asset tags, equipment and chemical labels, cold and outdoor use</td>
<td>Highest. Resists heat, abrasion, solvents and UV exposure</td>
</tr>
</tbody>
</table>
<p>Three rules decide most ribbon problems before they happen.</p>
<ul>
<li><strong>The pairing is the spec, not the ribbon alone.</strong> Resin on uncoated paper will not anchor properly, and wax on polyester wipes off with a thumb. Buying the toughest ribbon on the shelf and putting it on cheap stock produces a worse label than matching a wax ribbon to paper.</li>
<li><strong>The ribbon has to be at least as wide as the label.</strong> A ribbon narrower than the printed web leaves the stock running dry against the printhead at the edges, which is an expensive way to find out.</li>
<li><strong>Test the combination in the real environment.</strong> Rub it, heat it, freeze it, splash it with whatever the plant actually uses, then scan it. One afternoon of that settles arguments that otherwise run for a year.</li>
</ul>
<div style="background:#f7f9fb;border:1px solid #e3e8ee;border-radius:10px;padding:24px;margin:28px auto;">
<p style="margin:0 0 4px;font-size:13px;letter-spacing:.08em;text-transform:uppercase;color:#0060a8;font-weight:700;">In-house labeling</p>
<p style="margin:0 0 4px;font-size:20px;line-height:1.3;font-weight:700;color:#111111;">Four choices make up a labeling system</p>
<p style="margin:0 0 18px;font-size:14px;line-height:1.5;color:#41505f;">Each one is specified separately, and each one can make the other three print badly.</p>
<div role="img" aria-label="Four choices in an in-house labeling system: two print methods, direct thermal or thermal transfer; three ribbon grades, wax, wax-resin and resin; four printer lines stocked by TLF Graphics, Zebra, Sato, Tharo and GHS approved printers; and four BarTender software editions from Basic to Enterprise Automation." style="display:flex;flex-wrap:wrap;gap:12px;">
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">2</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">print methods: direct thermal or thermal transfer</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">3</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">ribbon grades: wax, wax/resin, resin</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">4</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">printer lines stocked: Zebra, Sato, Tharo, GHS approved</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">4</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">BarTender editions: Basic to Enterprise Automation</div>
</div>
</div>
<p style="margin:16px 0 0;font-size:13px;line-height:1.5;color:#41505f;">Source: the printers, ribbons, blank stock and software listed on the TLF Graphics labeling systems page.</p>
</div>
<h2 style="color:#000000">The blank stock is half the specification</h2>
<p>A printer and a ribbon print whatever stock is loaded. The stock decides whether the label stays on the part.</p>
<ul>
<li><strong>Facestock.</strong> Paper for short indoor life. Polypropylene where the label has to handle moisture and flexing. Polyester where it has to handle heat, solvents, abrasion or years outdoors.</li>
<li><strong>Adhesive.</strong> Permanent for anything that should never come off, removable where the label is temporary, high-tack for textured and low-energy surfaces, freezer-grade where the label is applied cold. TLF Graphics stocks those options on its <a href="https://www.tlfgraphicsusa.com/pressure-sensitive-label-manufacturer/">pressure sensitive label</a> line.</li>
<li><strong>Format.</strong> Die size, corner radius, labels across the web, gap or black-mark sensing, and whether the liner is perforated. The printer has to be able to find the start of each label.</li>
<li><strong>Roll geometry.</strong> Core diameter and maximum outside diameter have to fit the printer. A desktop unit takes a small roll; a production printer takes a large one and runs a shift longer between changes.</li>
<li><strong>Unwind direction.</strong> Roll labels have an orientation, and the applicator accepts one of them. The <a href="https://www.tlfgraphicsusa.com/art-resources/">art resources page</a> carries the unwind direction chart with the eight standard positions.</li>
</ul>
<p>Write those five lines down once, and reordering becomes a part number instead of a conversation.</p>
<h2 style="color:#000000">Printers, applicators and the software that drives them</h2>
<p>TLF Graphics supplies the system side of in-house printing alongside printed labels, through its <a href="https://www.tlfgraphicsusa.com/labeling-systems/">labeling systems</a> line: label printers for desktop, production line and warehouse use including Zebra, Sato and Tharo, GHS approved printers, dispensers, thermal transfer ribbons and blank label stock, plus BarTender design and print software, with technical support and customer service behind it.</p>
<p>Three things to settle when you specify the hardware:</p>
<ul>
<li><strong>Print width and resolution.</strong> Printhead resolution is quoted in dots per inch. 203 dpi is the common default; 300 dpi is the usual step up when the label carries small type, a 2D code in a tight space or fine rule work.</li>
<li><strong>Duty.</strong> A desktop printer is sized for a few hundred labels a day. A production printer is sized for a shift of them, and takes bigger rolls so it is not reloaded every hour.</li>
<li><strong>Application.</strong> Applicators run from semi-automatic units to high-speed, close-tolerance systems, with merge, tamp, blow and DAT tamp options. How the label is applied sets the liner, the format and the placement tolerance before artwork is drawn, so decide it early.</li>
</ul>
<p>On the software side, BarTender runs stand-alone or integrated with other systems for on-demand printing and marking, and comes in four editions: Basic, Professional, Automation and Enterprise Automation. The edition is a data question, not a design one. If the label content is typed by a person, the entry-level edition prints it. If it has to come out of an ERP record, a scale or a scanner without anyone retyping it, that is what the automation editions exist for.</p>
<h2 style="color:#000000">Where in-house printing stops and a converter starts</h2>
<p>Printing at the line is right for content that changes every shift and only has to survive the building. It is the wrong answer for content that is fixed, regulated or expected to last as long as the product.</p>
<p>Nameplates, rating plates, safety and <a href="https://www.tlfgraphicsusa.com/ul-labels-rochester-ny/">UL labels</a>, control panel overlays, outdoor identification and decorated product all need a process a desktop printer does not have. TLF Graphics runs three core operations for that work, and the choice between them is made on run length, version count and durability:</p>
<ul>
<li><strong>Digital</strong> for high quality at any quantity, color repeatability, unlimited versions and variable data.</li>
<li><strong>Flexographic</strong> for large quantities with limited versions, printed on films, foils and papers, adhesive and non-adhesive.</li>
<li><strong>Screen</strong> for outdoor durability on rigid and flexible substrates, including industrial labels, overlay panels and retail signage.</li>
</ul>
<p>Direct-to-object UV LED printing covers aluminum, industrial panels, ADA and Braille signage and other substrates where durability matters, and digital embellishment adds foiling, raised tactile effects, spot varnish and holograms without tooling. The <a href="https://www.tlfgraphicsusa.com/print-technologies/">print technologies page</a> sets out what each process is chosen for, and our <a href="https://www.tlfgraphicsusa.com/industrial-labels-new-york/">industrial label specification guide</a> covers the environment and material side of the decision.</p>
<p>Most plants end up doing both: converted labels for the permanent identification, a thermal printer at the line for everything that changes. The two have to be specified together, because the blank stock in the printer and the printed label on the machine are often applied by the same person on the same shift.</p>
<h2 style="color:#000000">What to have ready before you ask for a quote</h2>
<p>A labeling system quote moves quickly when the request carries:</p>
<ul>
<li>What the label has to survive: temperature range, sunlight, chemicals, washdown, abrasion, and how long it has to stay readable.</li>
<li>The surface it goes on, including whether it is textured, curved, oily or low-energy plastic.</li>
<li>Label size and shape, and whether an existing die can be used.</li>
<li>Volume: labels per month, and the size of a typical batch.</li>
<li>Where the content comes from, and whether any of it is variable, serialized or barcoded.</li>
<li>How the label is applied: by hand, semi-automatic, or inline.</li>
<li>Any printer already in place, with make, model, print width and resolution, plus the maximum roll diameter and core size it accepts.</li>
<li>The facestock, adhesive and ribbon currently in use, if this is replacing something.</li>
</ul>
<p>TLF Graphics prints labels and supplies labeling systems from Metro Park in Rochester, NY, and sells the printers, ribbons and blank stock alongside the <a href="https://www.tlfgraphicsusa.com/custom-label-printing-rochester-ny/">custom label printing</a> itself. Send the list above and ask which method the job should run on: <a href="https://www.tlfgraphicsusa.com/contact-us/">contact the team</a> and the answer comes back with the stock and ribbon that go with it.</p>
<h2 style="color:#000000">Frequently asked questions</h2>
<p><strong>What is the difference between direct thermal and thermal transfer labels?</strong><br />
Direct thermal labels carry a heat-sensitive coating that darkens under the printhead, so they print without a ribbon. Thermal transfer printing uses a ribbon, and the printhead melts ink from that ribbon onto the label. The direct thermal image is the label&#8217;s own surface and fades with heat, sunlight and abrasion. The thermal transfer image is a bonded layer, which is what lets it last.</p>
<p><strong>How long does a direct thermal label last?</strong><br />
Expect months rather than years, and far less than that if the label sits in sunlight, near heat, in a washdown area or where it rubs. Published shelf-life figures vary by material, so treat them as a starting point and test the stock where the label will actually live. If it has to be read after it leaves your building, specify thermal transfer.</p>
<p><strong>Which ribbon do I need for polyester labels?</strong><br />
Resin. Polyester and other synthetic films need the resin grade to anchor properly and to deliver the heat, abrasion, solvent and UV resistance those labels are usually bought for. Wax belongs on uncoated and matte paper, and wax/resin on coated paper and some synthetics.</p>
<p><strong>Can one printer do both methods?</strong><br />
Many thermal transfer printers can also run in direct thermal mode, so the stock loaded decides the method rather than the machine. Direct thermal only printers cannot work the other way, because they have no ribbon path. Confirm the mode on the model before you plan around it.</p>
<p><strong>Do I need special labels for a thermal transfer printer?</strong><br />
Yes, and matching them is the main skill. The facestock has to suit the ribbon grade, the die size and roll geometry have to fit the printer, and the sensing method has to match how the printer finds each label. A ribbon-and-stock pair that is matched prints a sharper code than either component does on its own.</p>
<p><strong>Should I print labels in house or buy them printed?</strong><br />
Split it by what the content does. Content that changes every shift and only has to survive the building belongs on a printer at the line. Content that is fixed, regulated or has to last the life of the product belongs with a converter who can put it on the right material with the right process. Most manufacturers do both, from one supplier, so the stock, ribbon and converted labels are specified against each other.</p>
<hr>
<p class="byline" style="color:#555"><em>Written by the team at TLF Graphics, a printer of industrial labels, product decoration and retail signage in Rochester, NY, supplying label printers, ribbons, blank stock, applicators and software alongside the printed labels themselves. See the <a href="https://www.tlfgraphicsusa.com/labeling-systems/">labeling systems</a> line.</em></p>
]]></content:encoded>



			</item>
		<item>
		<title>Craft Beverage Can Label Dimensions and Die Lines</title>
		<link>https://www.tlfgraphicsusa.com/craft-beverage-can-label-dimensions/#utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=craft-beverage-can-label-dimensions</link>

		<dc:creator><![CDATA[Howell Studios]]></dc:creator>
		<pubDate>Sun, 08 Nov 2026 14:15:00 +0000</pubDate>
				<category><![CDATA[Label Printing]]></category>
		<category><![CDATA[beverage labels]]></category>
		<category><![CDATA[craft beer labels]]></category>
		<category><![CDATA[label printing]]></category>
		<guid isPermaLink="false">https://www.tlfgraphicsusa.com/?p=24307</guid>

					<description><![CDATA[Die line sizes for 12 oz, sleek, 16 oz and crowler can labels, plus the bleed, safe zone, barcode and unwind specs a print-ready file needs.]]></description>
										<content:encoded><![CDATA[<p><script type="application/ld+json">
{
  "@context": "https://schema.org",
  "@graph": [
    {
      "@type": "BlogPosting",
      "headline": "Craft Beverage Can Label Dimensions and Die Lines",
      "description": "Die line sizes for 12 oz, sleek, 16 oz and crowler can labels, plus the bleed, safe zone, barcode and unwind specs a print-ready file needs.",
      "datePublished": "2026-11-08",
      "dateModified": "2026-11-08",
      "inLanguage": "en-US",
      "author": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/"
      },
      "publisher": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/"
      },
      "mainEntityOfPage": {
        "@type": "WebPage",
        "@id": "https://www.tlfgraphicsusa.com/craft-beverage-can-label-dimensions/"
      },
      "about": "Craft beverage can label artwork specification and die line templates"
    },
    {
      "@type": "FAQPage",
      "mainEntity": [
        {
          "@type": "Question",
          "name": "What size should a 12 oz can label be?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "It depends on the die the job runs on, which is why TLF Graphics publishes the templates rather than a single number. The standard 12 oz can die lines on the TLF art resources page are 7 x 3.5, 8 x 3.5, 8.5 x 3.5, 8 x 3.25 and 8 x 3.625 inches, most with a 0.125 inch corner radius and one 8 x 3.5 version with a 0.0156 inch radius. A 12 oz sleek can is a different shape and uses its own templates: 6.875 x 5.375, 7 x 5.4 and 7.125 x 5.375 inches."
          }
        },
        {
          "@type": "Question",
          "name": "How much bleed does a can label need?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "At least 0.125 inch, an eighth of an inch, on all four sides. The TLF Graphics art department guidelines ask you to extend the background of the artwork into the bleed area on every side, and to keep important text and images at least 1/16 inch inside the die line so nothing is trimmed off."
          }
        },
        {
          "@type": "Question",
          "name": "What is the safe zone on a label?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "The safe zone is the margin just inside the die line. TLF Graphics asks that no important text or image sits within 1/16 inch of the die line, because that band is where cutting tolerance shows up. Background art should run past the die line into the bleed; content should stop short of it."
          }
        },
        {
          "@type": "Question",
          "name": "Which file format should I send for label artwork?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Adobe Illustrator is the industry standard software for labels and packaging, and TLF Graphics also accepts Adobe PDF, Adobe InDesign and Adobe Photoshop files. Files from Microsoft Publisher, PowerPoint or Word are generally not suitable for digital prepress. Set the document to CMYK rather than RGB, keep placed images at 300 PPI or better, embed or supply every linked image, and either outline the fonts or send them with the file."
          }
        },
        {
          "@type": "Question",
          "name": "What is label unwind direction and why does it matter?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Unwind direction describes how the printed labels sit on the roll and which edge of the design comes off the roll first. There are eight positions. Positions 1 to 4 are wound out, with the labels on the outside of the roll; positions 5 to 8 are wound in, with the labels on the inside. Within each group the design dispenses top, bottom, right-hand side or left-hand side first. The applicator on the filling line accepts one of them, so the position belongs on the order, not in a later email."
          }
        },
        {
          "@type": "Question",
          "name": "How small can a barcode be printed on a label?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "The TLF Graphics art department guidelines give a minimum overall barcode size of 1.175 inches wide by 0.816 inches high, a normal size of 1.469 by 1.02 inches and a maximum of 2.938 by 2.04 inches. Leave a quiet zone of at least 0.125 inch of empty space around the symbol, and print dark bars on a light background. Red or low-contrast bars will not scan."
          }
        }
      ]
    }
  ]
}
</script></p>
<div class="author-box" style="background:#f6f6f6;border:1px solid #e2e2e2;border-radius:10px;padding:16px 20px;color:#1a1a1a">
<p style="color:#1a1a1a;margin:.2em 0"><strong style="color:#1a1a1a">Key Takeaways</strong></p>
<ul style="color:#1a1a1a;margin:.4em 0 0">
<li style="color:#1a1a1a">The die line is the cut. Background art runs 0.125&#8243; past it on all four sides, and nothing that matters sits within 1/16&#8243; inside it.</li>
<li style="color:#1a1a1a">Can label size is set by the die, not by the can&#8217;s volume. TLF Graphics publishes 17 craft beverage die line templates covering 12 oz, 12 oz sleek, 16 oz, crowler and keg collar formats.</li>
<li style="color:#1a1a1a">Corner radius is part of the tool. The same 8&#8243; x 3.5&#8243; label exists with a 0.125&#8243; radius and with a 0.0156&#8243; radius, and they are not interchangeable.</li>
<li style="color:#1a1a1a">Build in Adobe Illustrator, set the document to CMYK, keep images at 300 PPI, outline the fonts and call out Pantone colors by number. Word, PowerPoint and Publisher files are not print files.</li>
<li style="color:#1a1a1a">Send an unwind position with the order. There are eight, and the applicator on the filling line takes one of them.</li>
</ul>
</div>
<p>A can label job usually stops for one of three reasons. The artwork is the wrong size for the die. The file was built in software prepress cannot open cleanly. Or the roll arrives wound the wrong way for the applicator at the cannery.</p>
<p>All three are decided in the design file, weeks before anything prints. This is the specification sheet for getting them right: the die sizes TLF Graphics publishes for craft beverage work, what bleed and safe zone actually mean on a label, how to build a file that does not need rebuilding, what makes a barcode scan, and how to name an unwind position.</p>
<h2 style="color:#000000">What a die line is, and what sits around it</h2>
<p>Three terms do most of the work on a label layout, and TLF&#8217;s <a href="https://www.tlfgraphicsusa.com/art-resources/">art resources page</a> defines all three in its art department guidelines.</p>
<ul>
<li><strong>Die line.</strong> The actual cut of the final design. It is a tool on a press, not a rectangle in your file. If your artwork does not match a die the job can run on, something has to change, and it will not be the die.</li>
<li><strong>Bleed.</strong> Extend the background of the artwork into the bleed area at least 1/8&#8243;, which is 0.125&#8243;, on all sides. Without it, the smallest movement in the web shows as a white sliver along one edge of the finished label.</li>
<li><strong>Safe zone.</strong> Do not place important text or images within 1/16&#8243; of the die line. That band is where cutting tolerance lives. Background runs past the die line; content stops short of it.</li>
</ul>
<p>Said plainly: art goes past the cut, words stay away from it. Most of the revisions a prepress department sends back on a first-time label are one of those two rules.</p>
<h2 style="color:#000000">The craft beverage die sizes TLF publishes</h2>
<p>TLF Graphics puts its die line templates on the art resources page as downloadable PDFs, grouped by container. Each file states its own die size and corner radius. These are the current craft beverage templates.</p>
<table>
<tbody>
<tr>
<td><strong>Container</strong></td>
<td><strong>Die size (w x h)</strong></td>
<td><strong>Corner radius</strong></td>
</tr>
<tr>
<td>12 oz can</td>
<td>7&#8243; x 3.5&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>12 oz can</td>
<td>8&#8243; x 3.5&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>12 oz can</td>
<td>8&#8243; x 3.5&#8243;</td>
<td>0.0156&#8243;</td>
</tr>
<tr>
<td>12 oz can</td>
<td>8.5&#8243; x 3.5&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>12 oz can</td>
<td>8&#8243; x 3.25&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>12 oz can</td>
<td>8&#8243; x 3.625&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>12 oz sleek can</td>
<td>6.875&#8243; x 5.375&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>12 oz sleek can</td>
<td>7&#8243; x 5.4&#8243;</td>
<td>0.0156&#8243;</td>
</tr>
<tr>
<td>12 oz sleek can</td>
<td>7.125&#8243; x 5.375&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>16 oz can</td>
<td>7.5&#8243; x 5&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>16 oz can</td>
<td>8&#8243; x 5&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>16 oz can</td>
<td>8.0625&#8243; x 5&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>16 oz can</td>
<td>8.0625&#8243; x 5&#8243;</td>
<td>0.015&#8243;</td>
</tr>
<tr>
<td>Crowler</td>
<td>10&#8243; x 6&#8243;</td>
<td>0.125&#8243;</td>
</tr>
<tr>
<td>Keg collar</td>
<td>6.75&#8243; x 6.75&#8243;</td>
<td>not applicable</td>
</tr>
<tr>
<td>General</td>
<td>5&#8243; x 3.5&#8243;</td>
<td>square corners</td>
</tr>
<tr>
<td>General</td>
<td>7.125&#8243; x 3.625&#8243;</td>
<td>square corners</td>
</tr>
</tbody>
</table>
<p>Two things are worth reading off that table before you start drawing.</p>
<p><strong>A 12 oz can and a 12 oz sleek can are not the same label.</strong> They hold the same volume in a different shape, and the templates show it: the standard 12 oz dies are roughly 3.25&#8243; to 3.625&#8243; tall, the sleek dies are around 5.375&#8243; tall and slightly narrower. A label built for one will not wrap the other.</p>
<p><strong>The same nominal size can exist as two different dies.</strong> There is an 8&#8243; x 3.5&#8243; twelve-ounce die with a 0.125&#8243; corner radius and another with a 0.0156&#8243; radius, and a 16 oz 8.0625&#8243; x 5&#8243; in both 0.125&#8243; and 0.015&#8243;. A corner radius is cut by the tool. Rounding the corners in your artwork instead of downloading the matching template does not change what the press does.</p>
<p>Download the template for the die your job will run on and build inside it. If you are not sure which one that is, say what the can is and who is filling it, and the answer comes back before any art is drawn.</p>
<h2 style="color:#000000">Build a file that does not need rebuilding</h2>
<p>The art department guidelines on the same page are short, and every line in them exists because a job was once delayed by its opposite.</p>
<ul>
<li><strong>Software.</strong> Adobe Illustrator is the industry standard for labels and packaging. Adobe PDF, Adobe InDesign and Adobe Photoshop files are also accepted. Files from Microsoft Publisher, PowerPoint or Word are generally not suitable for digital prepress.</li>
<li><strong>Resolution.</strong> Placed images should be at least 300 PPI. Low-resolution files print blurry or blocky, and nothing in prepress can add detail that was never captured.</li>
<li><strong>Linked images.</strong> Embed every linked file, or send the linked images with the document. A missing link is the most common reason a package arrives incomplete.</li>
<li><strong>Type.</strong> Convert fonts to outline, or include a copy of the fonts with the file.</li>
<li><strong>Color.</strong> Set the document color mode to CMYK, not RGB. Call out Pantone colors by number, or supply a physical color sample to match.</li>
<li><strong>Packaging.</strong> Compress the job before sending it. A .zip speeds the transfer and protects the files from corruption in transit.</li>
</ul>
<p>Color mode is the one that costs the most when it is missed. A design approved on a backlit screen in RGB will shift when it is separated for print, and the shift usually lands on the brand color somebody chose years ago. Naming the Pantone takes a sentence and settles it.</p>
<div style="background:#f7f9fb;border:1px solid #e3e8ee;border-radius:10px;padding:24px;margin:28px auto;">
<p style="margin:0 0 4px;font-size:13px;letter-spacing:.08em;text-transform:uppercase;color:#0060a8;font-weight:700;">Artwork spec</p>
<p style="margin:0 0 4px;font-size:20px;line-height:1.3;font-weight:700;color:#111111;">The five numbers on a print-ready label file</p>
<p style="margin:0 0 18px;font-size:14px;line-height:1.5;color:#41505f;">Each one is a hard requirement, not a preference, and each is checked before the job is scheduled.</p>
<div role="img" aria-label="Five label artwork requirements: 0.125 inch bleed on all four sides, a 1/16 inch safe zone inside the die line, images at 300 PPI or better, a minimum barcode width of 1.175 inches, and eight unwind positions to choose from." style="display:flex;flex-wrap:wrap;gap:12px;">
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">0.125&#8243;</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">bleed, all four sides</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">1/16&#8243;</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">safe zone inside the die line</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">300 PPI</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">minimum image resolution</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">1.175&#8243;</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">smallest barcode width that scans</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">8</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">unwind positions to choose from</div>
</div>
</div>
<p style="margin:16px 0 0;font-size:13px;line-height:1.5;color:#41505f;">Source: TLF Graphics art department guidelines and web direction / unwind chart, both on the art resources page.</p>
</div>
<h2 style="color:#000000">Barcodes that actually scan</h2>
<p>A barcode is the one element on a beverage label that either works or does not, and it is usually sized by eye. The guidelines give real numbers.</p>
<table>
<tbody>
<tr>
<td><strong>Overall barcode size</strong></td>
<td><strong>Width</strong></td>
<td><strong>Height</strong></td>
</tr>
<tr>
<td>Minimum</td>
<td>1.175&#8243;</td>
<td>0.816&#8243;</td>
</tr>
<tr>
<td>Normal</td>
<td>1.469&#8243;</td>
<td>1.02&#8243;</td>
</tr>
<tr>
<td>Maximum</td>
<td>2.938&#8243;</td>
<td>2.04&#8243;</td>
</tr>
</tbody>
</table>
<p>Two rules sit alongside the size. The quiet zone, the empty space around the symbol that tells the scanner where the code begins and ends, should be at least 0.125&#8243;. And contrast has to be high: dark bars on a light background. Red bars and low-contrast combinations do not scan, however good they look in the layout.</p>
<p>Which symbology you need depends on what the code has to carry:</p>
<ul>
<li><strong>UPC-A</strong> identifies products in retail stores. If the can is going on a shelf, this is the one the buyer asks about.</li>
<li><strong>Code 128</strong> has no character limit, which suits shipping labels and any code that mixes data types.</li>
<li><strong>GS1-128</strong> encodes detailed product information such as batch or lot, serial number and expiration date.</li>
<li><strong>Code 39</strong>, also written 3 of 9, turns up on name badges, inventory and industrial applications.</li>
<li><strong>Data Matrix</strong> labels small electronic and industrial components where there is almost no room.</li>
<li><strong>QR codes</strong> carry website links, contact information or payments, which on a beverage label usually means the brand story or a loyalty program.</li>
</ul>
<h2 style="color:#000000">Unwind direction, the spec nobody sends</h2>
<p>Roll labels have an orientation on the roll, and the applicator at the cannery or co-packer accepts exactly one. TLF publishes a web direction and unwind chart with the eight standard positions, and it is worth looking at before the order goes in rather than after the pallet arrives.</p>
<p>The eight split into two groups of four:</p>
<ul>
<li><strong>Positions 1 to 4 are wound out.</strong> The labels sit on the outside of the roll.</li>
<li><strong>Positions 5 to 8 are wound in.</strong> The labels sit on the inside of the roll.</li>
</ul>
<p>Within each group, the number says which edge of the design comes off the roll first: top of the design first (1 and 5), bottom first (2 and 6), right-hand side first (3 and 7), left-hand side first (4 and 8).</p>
<p>Nobody has to memorize that. The practical step is to ask whoever runs the applicator which position their line takes, write the number on the purchase order, and keep it on file for reorders. A perfectly printed roll in the wrong unwind is a reprint, and it is a reprint that nobody catches until the line is already set up.</p>
<h2 style="color:#000000">Keg collars and the logos you are allowed to print</h2>
<p>Keg collars use their own die: 6.75&#8243; square, with a center hole rather than a corner radius. The same bleed and safe zone rules apply, and the printable area is tighter than it looks because the collar has to clear the keg&#8217;s neck. Our <a href="https://www.tlfgraphicsusa.com/keg-collars-rochester/">guide to keg collars</a> covers the ordering side of that format.</p>
<p>The art resources page also carries official logo files that craft beverage brands are routinely asked to place, in print-quality PDF: the Independent Craft Beer logo, the Think NY Drink NY mark, and the New York State Brewers Association logo in color and in black and white. Pulling one of those off a web page as a low-resolution PNG is the other way a can label fails its preflight. Download the vector file.</p>
<h2 style="color:#000000">What to have ready when you order</h2>
<p>Everything above collapses into a short list. A craft beverage label order moves straight to production when it arrives with:</p>
<ul>
<li>The die line template the job runs on, named by size and corner radius.</li>
<li>Artwork bled 0.125&#8243; on all four sides, with nothing important inside the 1/16&#8243; safe zone.</li>
<li>A CMYK document, images at 300 PPI or better, fonts outlined or supplied, links embedded.</li>
<li>Pantone numbers for the brand colors, or a physical sample to match.</li>
<li>A barcode at or above the minimum size, with a 0.125&#8243; quiet zone and dark bars on a light ground.</li>
<li>The unwind position the filling line takes.</li>
<li>Quantity, number of versions, and the finish or material you expect.</li>
</ul>
<p>Labels in this category are printed on roll, and the press that suits a pilot batch is not the one that suits a year of a flagship SKU. Our overview of <a href="https://www.tlfgraphicsusa.com/print-technologies/">print technologies</a> covers how run length and version count pick the process, and the <a href="https://www.tlfgraphicsusa.com/beverage-label-printing/">beverage label printing guide</a> covers the regulated content that has to fit inside the die line once the artwork is built. For breweries in the region, our <a href="https://www.tlfgraphicsusa.com/craft-beer-labels-rochester/">craft beer label guide for Rochester</a> covers sourcing.</p>
<p>TLF Graphics prints craft beverage labels from Metro Park in Rochester, NY. Send the artwork with the die line and the unwind position, or ask for a template first: <a href="https://www.tlfgraphicsusa.com/contact-us/">contact the team</a> and the prepress department will tell you which file to build in.</p>
<h2 style="color:#000000">Frequently asked questions</h2>
<p><strong>What size should a 12 oz can label be?</strong><br />
It depends on the die the job runs on, which is why TLF Graphics publishes templates rather than a single number. The standard 12 oz die lines are 7&#8243; x 3.5&#8243;, 8&#8243; x 3.5&#8243;, 8.5&#8243; x 3.5&#8243;, 8&#8243; x 3.25&#8243; and 8&#8243; x 3.625&#8243;, most with a 0.125&#8243; corner radius and one 8&#8243; x 3.5&#8243; version at 0.0156&#8243;. A 12 oz sleek can is a different shape and uses its own templates: 6.875&#8243; x 5.375&#8243;, 7&#8243; x 5.4&#8243; and 7.125&#8243; x 5.375&#8243;.</p>
<p><strong>How much bleed does a can label need?</strong><br />
At least 0.125&#8243;, an eighth of an inch, on all four sides. Extend the background of the artwork into the bleed area on every side, and keep important text and images at least 1/16&#8243; inside the die line so nothing is trimmed off.</p>
<p><strong>What is the safe zone on a label?</strong><br />
The margin just inside the die line. No important text or image should sit within 1/16&#8243; of the cut, because that band is where cutting tolerance shows up. Background art runs past the die line into the bleed; content stops short of it.</p>
<p><strong>Which file format should I send?</strong><br />
Adobe Illustrator is the industry standard for labels and packaging, and Adobe PDF, InDesign and Photoshop files are also accepted. Microsoft Publisher, PowerPoint and Word files are generally not suitable for digital prepress. Set the document to CMYK, keep placed images at 300 PPI or better, embed or supply every linked image, and outline the fonts or send them along.</p>
<p><strong>What is unwind direction and why does it matter?</strong><br />
It describes how the labels sit on the roll and which edge of the design comes off first. There are eight positions: 1 to 4 wound out with the labels on the outside of the roll, 5 to 8 wound in with the labels on the inside, each group dispensing top, bottom, right-hand side or left-hand side first. The applicator on the filling line accepts one of them.</p>
<p><strong>How small can a barcode be?</strong><br />
The minimum overall size is 1.175&#8243; wide by 0.816&#8243; high. Normal is 1.469&#8243; by 1.02&#8243;, and the maximum is 2.938&#8243; by 2.04&#8243;. Leave at least 0.125&#8243; of quiet zone around the symbol and print dark bars on a light background. Red or low-contrast bars will not scan.</p>
<hr>
<p class="byline" style="color:#555"><em>Written by the team at TLF Graphics, an ISO 9001:2015 certified printer producing industrial labels, product decoration and retail signage from Metro Park in Rochester, NY. Download the die line templates on the <a href="https://www.tlfgraphicsusa.com/art-resources/">art resources page</a>.</em></p>
]]></content:encoded>



			</item>
		<item>
		<title>Industrial Labels in New York: A Specification Guide</title>
		<link>https://www.tlfgraphicsusa.com/industrial-labels-new-york/#utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=industrial-labels-new-york</link>

		<dc:creator><![CDATA[Howell Studios]]></dc:creator>
		<pubDate>Sat, 07 Nov 2026 14:15:00 +0000</pubDate>
				<category><![CDATA[Label Printing]]></category>
		<category><![CDATA[label compliance]]></category>
		<category><![CDATA[label printing]]></category>
		<category><![CDATA[New York]]></category>
		<category><![CDATA[UL labels]]></category>
		<guid isPermaLink="false">https://www.tlfgraphicsusa.com/?p=24304</guid>

					<description><![CDATA[Specifying industrial labels in New York: substrate and print method, what UL authorization covers, and what a supplier needs to quote the job.]]></description>
										<content:encoded><![CDATA[<p><script type="application/ld+json">
{
  "@context": "https://schema.org",
  "@graph": [
    {
      "@type": "BlogPosting",
      "headline": "Industrial Labels in New York: A Specification Guide",
      "description": "How to specify industrial labels in New York: environment first, then substrate and print method, what UL authorization covers, and what to ask a supplier.",
      "datePublished": "2026-11-07",
      "dateModified": "2026-11-07",
      "inLanguage": "en-US",
      "author": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/"
      },
      "publisher": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/"
      },
      "mainEntityOfPage": {
        "@type": "WebPage",
        "@id": "https://www.tlfgraphicsusa.com/industrial-labels-new-york/"
      },
      "about": "Industrial labels and durable product identification",
      "areaServed": {
        "@type": "State",
        "name": "New York"
      }
    },
    {
      "@type": "FAQPage",
      "mainEntity": [
        {
          "@type": "Question",
          "name": "What makes a label industrial rather than ordinary?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "The requirement, not the artwork. An industrial label has to stay attached and legible through the service life of the product it identifies, which usually means some combination of tear resistance, fade resistance, water resistance and washability. TLF Graphics prints digital, screen and flexographic labels built for those conditions, on films, foils, papers, plastics and pressure sensitive materials."
          }
        },
        {
          "@type": "Question",
          "name": "Does a UL Authorized Label Supplier mean my label material is UL Recognized?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "No. They are two separate things. The Authorized Label Suppliers Program, category code PGAA, authorizes a printer to produce and distribute the UL certification marks. Recognition of the label material and construction sits under different category codes, such as PGDQ2 for marking and labeling systems and PGJI2 for printing materials. TLF Graphics is listed under both, as PGAA.LP1575 and as PGDQ2.MH15497 and PGJI2.MH19710."
          }
        },
        {
          "@type": "Question",
          "name": "Which print method should I ask for?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Let the run and the substrate decide. Screen printing suits outdoor durability, rigid and thick substrates and medium to large volumes. Flexographic suits high volumes on roll. Digital sheet and digital roll suit shorter runs, versions and variable data. Direct-to-object UV LED printing is for parts, panels and identification plates where there is no label at all."
          }
        },
        {
          "@type": "Question",
          "name": "Can I order industrial labels in a short run?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Yes. TLF Graphics lists no minimum order quantity among the advantages of working with it, and digital presses run small, medium and large quantities without new tooling. Short runs are also how versioned labels and prototype builds are normally handled."
          }
        },
        {
          "@type": "Question",
          "name": "Do you supply manufacturers outside Rochester?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Yes. TLF Graphics produces from two facilities on Metro Park in Rochester, NY, and prints and ships nationally, so plants elsewhere in New York State are a freight question rather than a different supply chain."
          }
        },
        {
          "@type": "Question",
          "name": "What information does a label supplier need to quote?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "The surface the label goes on, the environment it has to survive, the service life you expect, the annual quantity and version count, how it will be applied, and whether a UL mark or other regulated content appears on it. Send print-ready art with the die line, or use the die line templates on the TLF Graphics art resources page."
          }
        }
      ]
    }
  ]
}
</script></p>
<div class="author-box" style="background:#f6f6f6;border:1px solid #e2e2e2;border-radius:10px;padding:16px 20px;color:#1a1a1a">
<p style="color:#1a1a1a;margin:.2em 0"><strong style="color:#1a1a1a">Key Takeaways</strong></p>
<ul style="color:#1a1a1a;margin:.4em 0 0">
<li style="color:#1a1a1a">An industrial label is specified by what it has to survive. Decide the surface, the environment and the service life before anyone opens the artwork.</li>
<li style="color:#1a1a1a">Four families cover most industrial work: product labels, safety and warning labels including UL marks, variable data labels, and kit labels.</li>
<li style="color:#1a1a1a">The print method follows the run. Screen for outdoor durability and rigid substrates, flexographic for large roll volumes, digital for short runs and versions, direct-to-object when the part itself is the substrate.</li>
<li style="color:#1a1a1a">Permission to print the UL Mark and recognition of the label material are two different UL listings. Ask for both file numbers, and for the Canadian files if the product crosses the border.</li>
<li style="color:#1a1a1a">TLF Graphics prints industrial labels from two facilities in Rochester, NY, and ships nationally, which shortens proofing and reorder cycles for New York manufacturers.</li>
</ul>
</div>
<p>Most industrial labels get bought twice. Once on price, and again after the first batch peels off a powder-coated housing, fades through a summer outdoors, or fails an audit because the UL Mark was printed by a shop that was not authorized to print it.</p>
<p>This guide is written for the person in a New York plant who has to put the specification in writing: what to decide before artwork, which print method fits which run, what UL authorization actually covers, and what changes when the label supplier is in the state rather than three freight days away.</p>
<h2 style="color:#000000">What counts as an industrial label?</h2>
<p>Industrial labeling is a durability category, not a product category. TLF Graphics groups the work into four families on its <a href="https://www.tlfgraphicsusa.com/industrial-durables/">industrial and durables</a> page, and most specifications land in one of them:</p>
<ul>
<li><strong>Product labels.</strong> Branding, instructions, identification and decoration on a product that may live indoors or outdoors for years.</li>
<li><strong>Safety, warning and UL labels.</strong> The labels that have to stay legible on dangerous tools, machinery and equipment, because they are what prevents an injury and what an inspector looks for.</li>
<li><strong>Variable data labels.</strong> Barcodes, QR codes, sequential numbering, serialized labels and secure tracking labels, where every unit carries a different value.</li>
<li><strong>Kit labels.</strong> Sets supplied together for heavy machinery, industrial equipment, HVAC and automotive assemblies, so the line applies one kit per unit rather than picking from seven rolls.</li>
</ul>
<p>The applications behind those families are ordinary New York manufacturing: electronics, handheld devices, lawn and landscape equipment, pumps, industrial and wet/dry vacuums, heavy equipment, automotive, medical and fitness equipment, home appliances, HVAC, industrial tools, and equipment rental fleets. If your product is handled, mounted outdoors, washed down or rented out, it needs a label built for that and not a stock sticker.</p>
<h2 style="color:#000000">Specify the environment before the artwork</h2>
<p>The single most useful thing a buyer can do is write down the conditions first. TLF describes its <a href="https://www.tlfgraphicsusa.com/industrial-labeling/">industrial labeling</a> work in exactly those terms: labels designed to withstand the toughest outdoor elements on earth or under the sea, where tear resistance, fade resistance, waterproofing and washability are the common requirements.</p>
<p>Six questions settle most of a specification:</p>
<ul>
<li><strong>What is the surface?</strong> Powder coat, bare aluminum, textured polymer and low-energy plastics do not accept the same adhesive.</li>
<li><strong>What is the temperature range?</strong> Both at application and in service. A label applied cold behaves differently from one applied warm.</li>
<li><strong>What chemicals touch it?</strong> Solvents, fuels, cleaning agents and caustic washdown each rule out different constructions. For food plants, the washdown case is specific enough that we wrote it up separately in our guide to <a href="https://www.tlfgraphicsusa.com/washdown-resistant-labels-food-processing/">washdown-resistant labels</a>.</li>
<li><strong>How much sunlight?</strong> Outdoor service is a fade question, and it is the main reason screen printing is still specified for durable work.</li>
<li><strong>How long must it last?</strong> The service life of the product is the honest answer for a safety or UL label, and it is usually longer than the label anyone priced.</li>
<li><strong>How is it applied?</strong> By hand, with a semi-automatic applicator, or inline at speed. That decides liner, format and tolerance before it decides anything else.</li>
</ul>
<p>Substrate follows from those answers. TLF prints on films, foils, paper, plastics and pressure sensitive materials, which is a wider range than most single-process shops carry, and the material choice is where a durable label is won or lost.</p>
<h2 style="color:#000000">Match the print method to the run</h2>
<p>A label supplier with one press will specify the method it owns. A supplier with several will specify the method the job needs. These are the five production routes on the TLF <a href="https://www.tlfgraphicsusa.com/print-technologies/">print technologies</a> page, and what each is chosen for.</p>
<table>
<tbody>
<tr>
<td><strong>Method</strong></td>
<td><strong>Chosen for</strong></td>
<td><strong>Format</strong></td>
</tr>
<tr>
<td>Screen printing</td>
<td>Outdoor durability, rigid and thick substrates, the most demanding applications</td>
<td>Sheet or individual, medium to large volumes</td>
</tr>
<tr>
<td>Flexographic</td>
<td>High quality at large quantity, limited versions, films, foils and papers</td>
<td>Rolls, sheeted or fan-folded</td>
</tr>
<tr>
<td>Digital sheet fed</td>
<td>Work similar to screen printing at smaller quantities</td>
<td>Sheets, small to medium runs</td>
</tr>
<tr>
<td>Digital roll</td>
<td>Detailed indoor and outdoor labels, unlimited versions and variable data, quick turnaround</td>
<td>Rolls, small to large runs</td>
</tr>
<tr>
<td>Digital wide-format</td>
<td>Die-cut labels plus rugged outdoor signage and banners</td>
<td>Flexible vinyl through rigid plastics</td>
</tr>
<tr>
<td>Direct-to-object</td>
<td>Printing straight onto the product, component or machine part with UV LED inkjet</td>
<td>Signs, panels, identification plates, dispensers, Braille signage</td>
</tr>
</tbody>
</table>
<p>Direct-to-object deserves a second look if you are currently labeling something you could print instead. TLF partnered with Direct Color Systems for UV LED inkjet printing on aluminum, industrial panels and other difficult substrates where durability matters. For an identification plate that lives on a machine for a decade, removing the adhesive from the equation removes the most common failure mode.</p>
<h2 style="color:#000000">What UL authorization actually covers</h2>
<p>This is where specifications go wrong most often, because two unrelated UL listings get treated as one.</p>
<p><strong>Printing the Mark.</strong> UL&#8217;s Authorized Label Suppliers Program, category code PGAA, authorizes a printer to produce and distribute the UL certification marks. It exists to protect the marks from counterfeiting, and each authorized location holds its own file number. TLF Graphics is listed as PGAA.LP1575.</p>
<p><strong>The label itself.</strong> Recognition of the label construction is a separate matter under different category codes. TLF is listed for Marking and Labeling Systems as PGDQ2.MH15497 and for Printing Materials as PGJI2.MH19710, with Repackaged Recognized Components under TEOU2.E353219.</p>
<p><strong>Crossing the border.</strong> Each of those has a Canadian counterpart, and TLF holds them: PGDQ8.MH15497, PGJI8.MH19710 and TEOU8.E353219. If your product ships from a New York plant into Ontario or Quebec, those are the files that keep the label from becoming the reason a shipment stops.</p>
<p>So ask two questions of any supplier, not one. Are you authorized to print the UL Mark, and is the label system you are quoting recognized? A shop can hold the first without the second. If you want the longer version of how this plays out on a shop floor, our guide to <a href="https://www.tlfgraphicsusa.com/ul-labels-rochester-ny/">UL labels</a> walks through it.</p>
<p>Quality system is the other audit question. TLF Graphics is an ISO 9001:2015 certified company and adopted lean manufacturing in 2007, and its quality management system is audited by some of the largest manufacturers in the US and worldwide. For a regulated product, the supplier&#8217;s quality system is part of your own documentation.</p>
<h2 style="color:#000000">Variable data, barcodes and serialized tracking</h2>
<p>Most of the industrial label work that grows every year is variable: every unit different, every value traceable. The forms are familiar once you see them listed together: barcodes, QR codes, sequential numbering, warehouse labels, wrap labeling, serialized labels, unique barcodes, secure tracking labels, certified sport helmet labels and personalized labels.</p>
<p>Two decisions matter here. The first is where the data comes from and who owns it, because a serialized program is a data handoff before it is a print job. The second is whether the variable element has to survive the same conditions as the rest of the label. A barcode that will be scanned after two years on a rental machine has to be printed to last two years outdoors, not printed to look right on the proof.</p>
<p>If what you actually need is a tag on equipment rather than a label on a product, the related reading is our guide to <a href="https://www.tlfgraphicsusa.com/asset-tags-rochester/">asset tags</a> and the companion piece on <a href="https://www.tlfgraphicsusa.com/equipment-labels-rochester/">equipment labels</a>.</p>
<h2 style="color:#000000">Print at the line, or buy converted labels?</h2>
<p>Not every industrial label should be bought printed. Plants that generate labels as they work, warehouse locations, work orders, GHS chemical labels, batch records, are usually better served printing on demand and buying blanks.</p>
<p>TLF supplies both sides of that choice through its <a href="https://www.tlfgraphicsusa.com/labeling-systems/">labeling systems</a> line: label printers for desktop, production line and warehouse use including Zebra, Sato and Tharo, GHS approved printers, dispensers, thermal transfer ribbons and blank label stock, plus BarTender design and print software. Applicators run from semi-automatic units to high-speed, close-tolerance systems with merge, tamp and blow options.</p>
<p>The practical split is this. Content that changes every shift, and that only has to survive the building, belongs on a printer at the line. Content that is fixed, regulated or has to survive the product&#8217;s service life, which includes nameplates, safety and UL labels, and anything outdoors, belongs with a converter who can put it on the right material with the right process.</p>
<h2 style="color:#000000">Sourcing industrial labels in New York</h2>
<p>TLF Graphics prints from two facilities on Metro Park in Rochester, NY: the corporate headquarters at 235 Metro Park and an operations facility at 145 Metro Park, both in Rochester, NY 14623. It has produced durable printed labels for the industrial and durables market for over 40 years, and it prints and ships nationally, so a plant in Buffalo, Syracuse, Binghamton or the Hudson Valley is a freight lane rather than a different supply chain.</p>
<div style="background:#f7f9fb;border:1px solid #e3e8ee;border-radius:10px;padding:24px;margin:28px auto;">
<p style="margin:0 0 4px;font-size:13px;letter-spacing:.08em;text-transform:uppercase;color:#0060a8;font-weight:700;">Supplier profile</p>
<p style="margin:0 0 4px;font-size:20px;line-height:1.3;font-weight:700;color:#111111;">What sits behind a New York label quote</p>
<p style="margin:0 0 18px;font-size:14px;line-height:1.5;color:#41505f;">The production and certification facts a specifier can check before awarding the work.</p>
<div role="img" aria-label="Five figures for TLF Graphics: over 75 printing and finishing devices, 121 staff, 7 UL file listings covering the US and Canada, 2 production facilities in Rochester New York, and over 40 years producing industrial and durable labels." style="display:flex;flex-wrap:wrap;gap:12px;">
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">75+</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">printing and finishing devices in house</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">121</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">people on the team</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">7</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">UL file listings, US and Canada</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">2</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">production facilities in Rochester, NY</div>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e8ee;border-radius:8px;padding:14px 16px;">
<div style="font-size:26px;line-height:1.1;font-weight:700;color:#0060a8;">40+</div>
<div style="font-size:13px;line-height:1.45;color:#41505f;margin-top:4px;">years on industrial and durable labels</div>
</div>
</div>
<p style="margin:16px 0 0;font-size:13px;line-height:1.5;color:#41505f;">Source: TLF Graphics company pages — About Us, Print Technologies and Industrial &amp; Durables.</p>
</div>
<p>Three things get shorter when the converter is in state. Proofing, because a physical sample can be looked at and signed off without a freight cycle. Production changes, because digital runs scale from a handful of units to large volumes without new tooling, and there is no minimum order quantity to design around. And reordering, because a label that worked can be rerun against the original file and color target instead of being re-specified.</p>
<p>Before you ask for a quote, gather the surface, the environment, the service life, the annual quantity and version count, the application method, and whether a UL Mark or other regulated content appears on the label. Send print-ready art with the die line, or start from the die line templates on the <a href="https://www.tlfgraphicsusa.com/art-resources/">art resources</a> page.</p>
<p>When the specification is ready, <a href="https://www.tlfgraphicsusa.com/contact-us/">contact TLF Graphics</a> with those details and we will match substrate, print method and finishing to the job.</p>
<h2 style="color:#000000">Frequently Asked Questions</h2>
<p><strong>What makes a label industrial rather than ordinary?</strong><br />
The requirement, not the artwork. An industrial label has to stay attached and legible through the service life of the product it identifies, which usually means some combination of tear resistance, fade resistance, water resistance and washability. TLF Graphics prints digital, screen and flexographic labels built for those conditions, on films, foils, papers, plastics and pressure sensitive materials.</p>
<p><strong>Does a UL Authorized Label Supplier mean my label material is UL Recognized?</strong><br />
No. They are two separate things. The Authorized Label Suppliers Program, category code PGAA, authorizes a printer to produce and distribute the UL certification marks. Recognition of the label material and construction sits under different category codes, such as PGDQ2 for marking and labeling systems and PGJI2 for printing materials. TLF Graphics is listed under both, as PGAA.LP1575 and as PGDQ2.MH15497 and PGJI2.MH19710.</p>
<p><strong>Which print method should I ask for?</strong><br />
Let the run and the substrate decide. Screen printing suits outdoor durability, rigid and thick substrates and medium to large volumes. Flexographic suits high volumes on roll. Digital sheet and digital roll suit shorter runs, versions and variable data. Direct-to-object UV LED printing is for parts, panels and identification plates where there is no label at all.</p>
<p><strong>Can I order industrial labels in a short run?</strong><br />
Yes. TLF Graphics lists no minimum order quantity among the advantages of working with it, and digital presses run small, medium and large quantities without new tooling. Short runs are also how versioned labels and prototype builds are normally handled.</p>
<p><strong>Do you supply manufacturers outside Rochester?</strong><br />
Yes. TLF Graphics produces from two facilities on Metro Park in Rochester, NY, and prints and ships nationally, so plants elsewhere in New York State are a freight question rather than a different supply chain.</p>
<p><strong>What information does a label supplier need to quote?</strong><br />
The surface the label goes on, the environment it has to survive, the service life you expect, the annual quantity and version count, how it will be applied, and whether a UL mark or other regulated content appears on it. Send print-ready art with the die line, or use the die line templates on the TLF Graphics art resources page.</p>
<hr>
<p class="byline" style="color:#555"><em>Written by the team at TLF Graphics, an ISO 9001:2015 certified, UL Authorized Label Supplier producing industrial labels and product decoration from two facilities on Metro Park in Rochester, NY. Learn more <a href="https://www.tlfgraphicsusa.com/about-us/">about TLF Graphics</a>.</em></p>
]]></content:encoded>



			</item>
		<item>
		<title>Custom Canopy Tents in Rochester, NY: A Buyer&#8217;s Guide</title>
		<link>https://www.tlfgraphicsusa.com/custom-canopy-tents-rochester-ny/#utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=custom-canopy-tents-rochester-ny</link>

		<dc:creator><![CDATA[Howell Studios]]></dc:creator>
		<pubDate>Thu, 05 Nov 2026 14:15:00 +0000</pubDate>
				<category><![CDATA[Industry Expertise]]></category>
		<category><![CDATA[canopy tents]]></category>
		<category><![CDATA[custom tents]]></category>
		<category><![CDATA[event displays]]></category>
		<category><![CDATA[retail signage]]></category>
		<category><![CDATA[Rochester]]></category>
		<guid isPermaLink="false">https://www.tlfgraphicsusa.com/?p=24295</guid>

					<description><![CDATA[Buying custom canopy tents in Rochester, NY? Compare frame grades, canopy printing, tent widths and weather durability before you order.]]></description>
										<content:encoded><![CDATA[<p><script type="application/ld+json">{"@context": "https://schema.org", "@graph": [{"@type": "BlogPosting", "headline": "Custom Canopy Tents in Rochester, NY: A Buyer's Guide", "description": "Buying custom canopy tents in Rochester, NY? Compare frame grades, canopy printing, tent widths and weather durability before you order.", "datePublished": "2026-11-05", "dateModified": "2026-11-05", "inLanguage": "en-US", "author": {"@type": "Organization", "name": "TLF Graphics", "url": "https://www.tlfgraphicsusa.com/"}, "publisher": {"@type": "Organization", "name": "TLF Graphics", "url": "https://www.tlfgraphicsusa.com/"}, "mainEntityOfPage": {"@type": "WebPage", "@id": "https://www.tlfgraphicsusa.com/custom-canopy-tents-rochester-ny/"}, "about": "Custom canopy tents in Rochester, NY", "areaServed": {"@type": "City", "name": "Rochester, NY"}}, {"@type": "FAQPage", "mainEntity": [{"@type": "Question", "name": "What sizes do custom canopy tents come in?", "acceptedAnswer": {"@type": "Answer", "text": "TLF's display store lists Economy tents at 5 and 10 feet, Deluxe tents at 6, 8 and 10 feet, Standard, Omni, Elite and Vented Canopy tents at 10 feet, and Premium Aluminum and Premium Gable tents at 10, 15 and 20 feet. A 10-foot tent covers the single vendor space most markets and festivals sell. Go wider when you need a double booth, a second table or seating out of the sun."}}, {"@type": "Question", "name": "Should I choose an economy steel or a premium aluminum frame?", "acceptedAnswer": {"@type": "Answer", "text": "Pick a steel economy frame if you set up only a few times a year and store the tent indoors. Choose an aluminum frame if you work events most weekends, because it is lighter to carry and raise and stands up to the repeated open-and-close cycle."}}, {"@type": "Question", "name": "Can the whole canopy be printed, or just the valance?", "acceptedAnswer": {"@type": "Answer", "text": "Both are options. A full-canopy print covers all four roof panels and is visible from across a lot, while a valance-only print puts your name on the edge skirt for less money. Full coverage is usually worth it when you need to be found among other tents."}}, {"@type": "Question", "name": "How do I keep a canopy tent from blowing over?", "acceptedAnswer": {"@type": "Answer", "text": "Weight every leg, since stakes will not hold on pavement or sidewalk and even a 10-foot canopy catches wind like a sail. A vented canopy helps by letting wind pass through the peak, and you should lower the walls or take the tent down when a storm moves in."}}, {"@type": "Question", "name": "Can I order a matching table cover and flags?", "acceptedAnswer": {"@type": "Answer", "text": "Yes. The display store carries table covers, sail sign flags, tent walls and tent accessories alongside the tents, so a booth can be ordered as a coordinated set rather than mismatched pieces."}}, {"@type": "Question", "name": "How long will a printed canopy last?", "acceptedAnswer": {"@type": "Answer", "text": "A dye-sublimated polyester canopy holds its color through repeated sun exposure far longer than an entry-level surface print. Fabric grade, frame grade, and how carefully you store the tent between events all affect how many seasons it lasts."}}]}]}</script></p>
<p>A custom canopy tent is a portable frame fitted with a printed fabric top, and often printed walls, that gives your brand a roof at an outdoor event. In Rochester, businesses order them for the Public Market, street festivals, farmers markets, sidewalk sales, grand openings, youth sports, and outdoor expos. This guide walks through the decisions that matter when you buy: frame grade, how canopy printing works, sizing, accessories, weather durability, and how to order from a Rochester printer.</p>
<div style="background-color:#f4f6f8;border:1px solid #d9dee3;border-radius:8px;padding:20px;margin:24px 0;">
<p style="color:#1a1a1a;font-size:1.12em;font-weight:700;margin:0 0 12px 0;">Key Takeaways</p>
<ul style="color:#1a1a1a;margin:0;padding-left:20px;">
<li style="color:#1a1a1a;margin-bottom:8px;">Frame grade is the first decision. Economy steel frames suit a few events a year, while aluminum frames hold up to a full season of weekly events.</li>
<li style="color:#1a1a1a;margin-bottom:8px;">A full-canopy print covers the whole top in your brand colors. Valance-only printing costs less but is far harder to read from a distance.</li>
<li style="color:#1a1a1a;margin-bottom:8px;">TLF&#8217;s display store lists tents from 5 to 20 feet wide. Match the width to the booth space your events sell.</li>
<li style="color:#1a1a1a;margin-bottom:8px;">Tent walls, table covers and sail sign flags turn one tent into a coordinated booth and add shade on bright days.</li>
<li style="color:#1a1a1a;margin-bottom:0;">Ordering from a Rochester printer lets you proof artwork, reprint a worn canopy, and avoid shipping delays before an event date that will not move.</li>
</ul>
</div>
<h2 style="color:#000000">Who orders custom canopy tents in Rochester?</h2>
<p>The clearest example is the Rochester Public Market at 280 North Union Street, which the <a href="https://www.cityofrochester.gov/publicmarket/" target="_blank" rel="noopener">City of Rochester</a> has run since 1905 and keeps open year-round. Vendors there work shoulder to shoulder, and a printed canopy is often the only thing that tells a shopper which stall is which from across the lot. The same holds at the Lilac Festival, neighborhood farmers markets, food truck rodeos, home shows, and company-sponsored 5K runs.</p>
<p>Typical buyers include food and beverage brands sampling at festivals, breweries pouring at outdoor events, real estate agents running open houses, roofing and home-improvement contractors at home shows, universities and hospitals at job fairs, and nonprofits at community days. If your team sets up outside more than two or three times a year, a custom canopy tent usually earns its keep.</p>
<h2 style="color:#000000">Choosing a frame: economy steel to premium aluminum</h2>
<p>The frame, not the graphic, decides how long a tent lasts. TLF&#8217;s <a href="https://tlfgraphics.displaycity.com/" target="_blank" rel="noopener">online display store</a> lists Economy, Standard, Deluxe, Omni, Elite, Premium Aluminum, Premium Gable and Vented Canopy tents, which covers the range from occasional use to heavy rotation.</p>
<p>Economy and standard tents usually ride on steel frames. They are heavier and cost less, which is fine if you set up a handful of times a season and store the tent indoors between events. Aluminum frames, often built in a hexagonal profile, weigh less, resist corrosion, and take the repeated open-and-close cycle of a vendor who works a market most weekends. If two people have to carry and raise the tent without help, the weight difference matters by the third event of the day.</p>
<p>Two roofline options are worth knowing. A gable frame adds a peaked roof that reads as more permanent and gives extra headroom at the edges. A vented canopy has a second layer at the peak that lets wind pass through instead of lifting the whole tent. For any frame, confirm the carry bag, stakes and a set of weights are included or available, because you will need all three.</p>
<h2 style="color:#000000">How canopy printing works</h2>
<p>Canopy printing almost always uses dye sublimation, a process that converts dye to gas and bonds it into polyester fibers so the graphic becomes part of the cloth rather than a coating on the surface. Because the color sits in the fabric, it resists cracking and fading better than a surface print and stays readable from the underside of the canopy as well as the top.</p>
<p>You will choose how much of the canopy to print. A full-canopy print wraps your brand across all four roof panels and is visible from across a crowded lot. A valance-only print puts your name on the hanging skirt around the edge, which costs less but disappears behind the heads of people standing at your booth. A peak-and-valance option sits in between. For most brands trying to be found in a field of white tents, full coverage is the one that pays off.</p>
<p>Artwork prep is straightforward if you plan ahead: supply a vector logo, build the file in CMYK, and keep critical text away from the seams where panels meet. The rigid signage and banners that complete a booth are produced on different equipment. TLF runs flexographic, screen and digital production and describes its screen-printed products as outdoor durable, which is the quality you want on anything that lives in the sun. The full method list is on the company&#8217;s <a href="https://www.tlfgraphicsusa.com/print-technologies/" target="_blank" rel="noopener">print technologies</a> page.</p>
<h2 style="color:#000000">Sizing a canopy tent and matching accessories</h2>
<p>Width is the main variable. The display store lists Economy tents at 5 and 10 feet, Deluxe tents at 6, 8 and 10 feet, Standard, Omni, Elite and Vented Canopy tents at 10 feet, and Premium Aluminum and Premium Gable tents at 10, 15 and 20 feet. A 10-foot tent covers the single vendor space most markets and festivals sell. Step up to 15 or 20 feet when you need a double booth, a second table, or seating out of the sun.</p>
<p>Walls and extras are where a plain shade turns into a booth. Printed tent walls add branding and block wind or afternoon glare. A printed table cover or throw ties the setup together, and sail sign flags pull eyes toward you from down the aisle. The store groups these as tent walls, tent accessories, table covers, and banners and flags, so one order can arrive as a coordinated kit rather than mismatched pieces.</p>
<p>If you already run indoor exhibits, treat the tent as the outdoor half of the same brand system. Our <a href="https://www.tlfgraphicsusa.com/trade-show-displays-rochester/" target="_blank" rel="noopener">trade show displays guide for Rochester</a> covers the banner stands, backdrops and table throws that should match your canopy, and the <a href="https://www.tlfgraphicsusa.com/counter-mats-new-york-buyers-guide/" target="_blank" rel="noopener">counter mats buyer&#8217;s guide</a> covers the point-of-purchase pieces that work on the table itself.</p>
<h2 style="color:#000000">Built for Rochester weather: sun, rain, and wind</h2>
<p>The <a href="https://www.cdc.gov/skin-cancer/sun-safety/index.html" target="_blank" rel="noopener">CDC</a> reports that UV rays are strongest from 10 a.m. to 4 p.m. during daylight saving time, advises reducing sun damage by staying in the shade &#8220;under an umbrella, tree, or other shelter,&#8221; and states that skin cancer is the most common cancer in the United States. A canopy&#8217;s first job, before any branding, is shade for your staff and your product through the middle of the day.</p>
<p>Rochester&#8217;s outdoor event season runs roughly May through October, which brings strong sun, pop-up rain, and the gusty wind that comes off Lake Ontario. Three things keep a tent standing through all of it. Use a water-resistant, flame-retardant canopy fabric with sealed seams so a passing shower does not soak your setup. Weight every leg, because stakes do not bite into a parking lot or a sidewalk and a 10-foot canopy acts like a sail in a surprising amount of wind. And when the forecast turns, lower the walls or take the canopy down rather than hoping it rides out a storm.</p>
<p>Durability on the graphic side comes down to fabric and ink. A dye-sublimated polyester canopy and screen-printed outdoor signage both hold color through repeated sun exposure far better than an entry-level surface print, which is why the grade of the print matters as much as the grade of the frame.</p>
<h2 style="color:#000000">What the display store carries for an outdoor booth</h2>
<p>A tent is one piece of an outdoor setup, and ordering the rest from the same place keeps the colors matched and the delivery on one schedule. Alongside the eight tent lines, TLF&#8217;s display store carries tent walls and tent accessories, table throws and runners, sail signs and fabric or vinyl banners, A-frame signs, an outdoor ballast display and an outdoor retractor for wind-exposed spots, market umbrellas, barricade covers and belt barriers, and coolers and event games for sampling booths.</p>
<p>Behind that catalog sits the plant itself. TLF prints with flexographic, screen and digital methods on films, foils, paper, plastics and pressure-sensitive materials, using more than 75 printing and finishing devices across two Metro Park facilities in Rochester.</p>
<figure class="hs-fig" style="margin:28px auto;padding:24px;background:#f7f9fb;border:1px solid #e3e9ef;border-left:4px solid #2574a8;border-radius:8px;">
<p style="margin:0 0 6px;font:700 12px/1.2 -apple-system,BlinkMacSystemFont,'Segoe UI',Roboto,'Helvetica Neue',Arial,sans-serif;letter-spacing:.08em;text-transform:uppercase;color:#2574a8;">Outdoor booth sourcing</p>
<p style="margin:0 0 6px;font:700 20px/1.3 -apple-system,BlinkMacSystemFont,'Segoe UI',Roboto,'Helvetica Neue',Arial,sans-serif;color:#111111;">What is behind a Rochester tent order</p>
<p style="margin:0 0 18px;font:400 15px/1.5 -apple-system,BlinkMacSystemFont,'Segoe UI',Roboto,'Helvetica Neue',Arial,sans-serif;color:#41505f;">The catalog and the plant that prints the rest of the booth.</p>
<div style="display:flex;flex-wrap:wrap;gap:12px;">
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e9ef;border-radius:6px;padding:16px;">
<p style="margin:0 0 4px;font:700 28px/1.1 -apple-system,BlinkMacSystemFont,'Segoe UI',Roboto,'Helvetica Neue',Arial,sans-serif;color:#111111;">8</p>
<p style="margin:0;font:400 14px/1.4 -apple-system,BlinkMacSystemFont,'Segoe UI',Roboto,'Helvetica Neue',Arial,sans-serif;color:#41505f;">tent lines in the display store, economy through premium aluminum</p>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e9ef;border-radius:6px;padding:16px;">
<p style="margin:0 0 4px;font:700 28px/1.1 -apple-system,BlinkMacSystemFont,'Segoe UI',Roboto,'Helvetica Neue',Arial,sans-serif;color:#111111;">5–20 ft</p>
<p style="margin:0;font:400 14px/1.4 -apple-system,BlinkMacSystemFont,'Segoe UI',Roboto,'Helvetica Neue',Arial,sans-serif;color:#41505f;">range of tent widths listed, from a 5-foot economy tent to a 20-foot gable</p>
</div>
<div style="flex:1 1 150px;background:#ffffff;border:1px solid #e3e9ef;border-radius:6px;padding:16px;">
<p style="margin:0 0 4px;font:700 28px/1.1 -apple-system,BlinkMacSystemFont,'Segoe UI',Roboto,'Helvetica Neue',Arial,sans-serif;color:#111111;">75+</p>
<p style="margin:0;font:400 14px/1.4 -apple-system,BlinkMacSystemFont,'Segoe UI',Roboto,'Helvetica Neue',Arial,sans-serif;color:#41505f;">printing and finishing devices across two Metro Park facilities</p>
</div>
</div>
<p style="margin:16px 0 0;font:400 12px/1.45 -apple-system,BlinkMacSystemFont,'Segoe UI',Roboto,'Helvetica Neue',Arial,sans-serif;color:#6b7a89;">TLF Graphics display store catalog and company profile.</p>
</figure>
<h2 style="color:#000000">How to order custom canopy tents in Rochester</h2>
<p>Work the decision in order. Start with how often and where you will set up, which sets your frame grade. Pick the width that fits the booth space you usually buy. Decide on full-canopy versus valance printing. Add the walls, table cover and flags that complete the booth. Then supply clean vector artwork so the print matches your brand colors.</p>
<p>Ordering locally is the practical advantage. TLF Graphics is a Rochester specialty printer, certified to ISO 9001:2015, and it offers tents, table covers and displays through its retail signage program and online display store. Buying from a shop in town means you can review a proof, reorder a replacement canopy when one wears out, and skip the shipping gamble before a date that will not move. Start with the <a href="https://www.tlfgraphicsusa.com/retail-signage/" target="_blank" rel="noopener">retail signage</a> lineup to see the display and tent options, look at past work in the <a href="https://www.tlfgraphicsusa.com/gallery/" target="_blank" rel="noopener">gallery</a>, and then <a href="https://www.tlfgraphicsusa.com/contact-us/" target="_blank" rel="noopener">contact the team</a> to spec your tent.</p>
<h2 style="color:#000000">Frequently Asked Questions</h2>
<h3 style="color:#000000">What sizes do custom canopy tents come in?</h3>
<p>TLF&#8217;s display store lists Economy tents at 5 and 10 feet, Deluxe tents at 6, 8 and 10 feet, Standard, Omni, Elite and Vented Canopy tents at 10 feet, and Premium Aluminum and Premium Gable tents at 10, 15 and 20 feet. A 10-foot tent covers the single vendor space most markets and festivals sell. Go wider when you need a double booth, a second table or seating out of the sun.</p>
<h3 style="color:#000000">Should I choose an economy steel or a premium aluminum frame?</h3>
<p>Pick a steel economy frame if you set up only a few times a year and store the tent indoors. Choose an aluminum frame if you work events most weekends, because it is lighter to carry and raise and stands up to the repeated open-and-close cycle.</p>
<h3 style="color:#000000">Can the whole canopy be printed, or just the valance?</h3>
<p>Both are options. A full-canopy print covers all four roof panels and is visible from across a lot, while a valance-only print puts your name on the edge skirt for less money. Full coverage is usually worth it when you need to be found among other tents.</p>
<h3 style="color:#000000">How do I keep a canopy tent from blowing over?</h3>
<p>Weight every leg, since stakes will not hold on pavement or sidewalk and even a 10-foot canopy catches wind like a sail. A vented canopy helps by letting wind pass through the peak, and you should lower the walls or take the tent down when a storm moves in.</p>
<h3 style="color:#000000">Can I order a matching table cover and flags?</h3>
<p>Yes. The display store carries table covers, sail sign flags, tent walls and tent accessories alongside the tents, so a booth can be ordered as a coordinated set rather than mismatched pieces.</p>
<h3 style="color:#000000">How long will a printed canopy last?</h3>
<p>A dye-sublimated polyester canopy holds its color through repeated sun exposure far longer than an entry-level surface print. Fabric grade, frame grade, and how carefully you store the tent between events all affect how many seasons it lasts.</p>
<hr>
<p><em>TLF Graphics is a Rochester, NY specialty printer producing labels, graphics, signage and displays from two facilities on Metro Park. Learn more <a href="https://www.tlfgraphicsusa.com/about-us/" target="_blank" rel="noopener">about the company</a> or reach out to plan your next outdoor event setup.</em></p>
]]></content:encoded>



			</item>
		<item>
		<title>Washdown-Resistant Labels for Food Processing Plants: A Specification Guide</title>
		<link>https://www.tlfgraphicsusa.com/washdown-resistant-labels-food-processing/#utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=washdown-resistant-labels-food-processing</link>

		<dc:creator><![CDATA[Howell Studios]]></dc:creator>
		<pubDate>Wed, 30 Sep 2026 13:15:00 +0000</pubDate>
				<category><![CDATA[Industry Expertise]]></category>
		<category><![CDATA[Label Printing]]></category>
		<guid isPermaLink="false">https://www.tlfgraphicsusa.com/?p=23815</guid>

					<description><![CDATA[What a caustic sanitation cycle does to a plant label, which facestock, adhesive and print method survive it, and the 50°F application rule behind most early failures.]]></description>
										<content:encoded><![CDATA[<p><script type="application/ld+json">{"@context":"https://schema.org","@graph":[{"@type":"BlogPosting","@id":"https://www.tlfgraphicsusa.com/washdown-resistant-labels-food-processing/#article","headline":"Washdown-Resistant Labels for Food Processing Plants: A Specification Guide","description":"What sanitation cycles do to plant labels, which constructions survive caustic washdown, and the 50°F application rule behind most failures.","datePublished":"2026-09-30","dateModified":"2026-09-30","inLanguage":"en-US","mainEntityOfPage":{"@type":"WebPage","@id":"https://www.tlfgraphicsusa.com/washdown-resistant-labels-food-processing/"},"author":{"@type":"Organization","name":"TLF Graphics","url":"https://www.tlfgraphicsusa.com/"},"publisher":{"@type":"Organization","name":"TLF Graphics, Inc.","url":"https://www.tlfgraphicsusa.com/"},"about":["Washdown labels","Industrial labeling","Food processing sanitation","UL 969","Pressure sensitive labels"]},{"@type":"FAQPage","@id":"https://www.tlfgraphicsusa.com/washdown-resistant-labels-food-processing/#faq","mainEntity":[{"@type":"Question","name":"What makes a label washdown-resistant?","acceptedAnswer":{"@type":"Answer","text":"Three things together: a facestock that does not absorb water or soften in hot caustic, usually polyester; an adhesive that keeps its bond wet and hot, usually a firm acrylic; and printing that sits under the surface rather than on top of it, through subsurface screen printing, an overlaminate, or a resin thermal transfer ribbon. Change any one of the three and the construction is no longer washdown-resistant."}},{"@type":"Question","name":"Do washdown labels need to be UL 969 recognized?","acceptedAnswer":{"@type":"Answer","text":"Only where the end-product standard calls for it, such as a rating plate or a safety marking on certified equipment. UL says ANSI/UL 969 is referenced in over 450 UL and 30 ULC end-product standards, and its evaluation conditions labels against high humidity or occasional exposure to water, elevated temperatures, sunlight and chemical agents. For a plain rack or valve label that no listing depends on, UL recognition is useful evidence of permanence rather than a requirement."}},{"@type":"Question","name":"Can a washdown label touch food?","acceptedAnswer":{"@type":"Answer","text":"Plant identification labels are normally applied to equipment and structure, not to food or food-contact surfaces. Where an adhesive is a component of an article used in packaging, transporting or holding food, 21 CFR 175.105 applies, and the regulation requires the adhesive to be separated from the food by a functional barrier or held to the limits it sets. Tell your label supplier where the label lands so the right construction is quoted."}},{"@type":"Question","name":"Why do new labels peel off in the cooler but not on the line?","acceptedAnswer":{"@type":"Answer","text":"Because of the surface temperature at application, not the cleaning. 3M's data sheet for its 7818 polyester label material gives a minimum application temperature of 10°C (50°F), and warns that surfaces below that can make the acrylic adhesive so firm it will not develop full contact with the substrate. A label applied in a 38°F cooler never builds its bond, then fails at the first wash."}},{"@type":"Question","name":"Are barcode labels printed in-house durable enough for washdown?","acceptedAnswer":{"@type":"Answer","text":"They can be, but the ribbon decides it as much as the stock. Wax and wax-resin ribbons are made for cartons and cold-chain use. Resin ribbons are the ones matched to topcoated polyester for chemical and abrasion resistance. If you print rack and asset labels on a thermal transfer printer in the plant, specify the stock and the ribbon as one system."}}]}]}</script></p>
<p>The label on a filler, a valve manifold, or a pallet rack in a food plant is not doing the same job as the label on the jar. It never meets a shopper. It has to survive the cleaning.</p>
<p>That is a harder brief than most label specs allow for. A sanitation crew hits the same asset tag with hot caustic several times a week, every week, for the life of the machine. A construction that is fine on a warehouse shelf will silver, curl, and lift inside a month. Then a maintenance tech is reading a machine number off a work order instead of off the machine, and your CMMS drifts out of date one asset at a time.</p>
<p>This guide covers what a wash cycle actually does, which parts of a label construction stop it, the application mistake behind most early failures, and what a food-safety auditor will ask you for. TLF Graphics has been printing <a href="https://www.tlfgraphicsusa.com/industrial-durables/">industrial and durable labels</a> for over 40 years, and the specification questions below are the ones that decide whether a job is quoted right.</p>
<h2>What a sanitation cycle actually puts a label through</h2>
<p>The numbers are worth looking at, because they are not close to room-temperature conditions. Hydrite, a food-plant chemical supplier, publishes typical clean-in-place parameters by equipment type. For an HTST or pasteurizer, the caustic wash runs at 1.0&ndash;2.0% sodium hydroxide, at 170&ndash;180&deg;F, for 45 to 60 minutes. Evaporators go to 1.5&ndash;4.0% caustic. Even cold and ambient transfer lines are cleaned at 135&ndash;150&deg;F.</p>
<p>Outside of CIP, open-plant washdown adds high-pressure spray, quat and peracid sanitizers, and a rinse that leaves standing water in every horizontal seam. The label is not immersed once. It is thermally cycled, chemically attacked, and physically blasted, on a schedule.</p>
<div style="margin:28px auto;max-width:100%;padding:20px 22px;background:#f7f9fb;border:1px solid #dde3e9;border-radius:12px">
<p style="margin:0 0 6px;font-size:12px;letter-spacing:.08em;text-transform:uppercase;font-weight:700;color:#0060a8">Washdown vs. label spec</p>
<p style="margin:0 0 4px;font-size:19px;font-weight:700;color:#111111">Four numbers that decide the construction</p>
<p style="margin:0 0 14px;font-size:14px;line-height:1.5;color:#41505f">A typical caustic wash against the published limits of one UL 969&ndash;recognized polyester label stock.</p>
<div style="display:flex;flex-wrap:wrap;gap:12px">
<div style="flex:1 1 150px;min-width:150px;padding:14px 16px;background:#ffffff;border:1px solid #dde3e9;border-top:3px solid #0060a8;border-radius:8px">
<p style="margin:0;font-size:28px;line-height:1.1;font-weight:700;color:#111111">1.0&ndash;2.0%</p>
<p style="margin:6px 0 0;font-size:13px;line-height:1.45;color:#41505f">Sodium hydroxide in an HTST clean-in-place wash</p>
</div>
<div style="flex:1 1 150px;min-width:150px;padding:14px 16px;background:#ffffff;border:1px solid #dde3e9;border-top:3px solid #0060a8;border-radius:8px">
<p style="margin:0;font-size:28px;line-height:1.1;font-weight:700;color:#111111">170&ndash;180&deg;F</p>
<p style="margin:6px 0 0;font-size:13px;line-height:1.45;color:#41505f">Temperature of that same wash, 45&ndash;60 minutes</p>
</div>
<div style="flex:1 1 150px;min-width:150px;padding:14px 16px;background:#ffffff;border:1px solid #dde3e9;border-top:3px solid #0060a8;border-radius:8px">
<p style="margin:0;font-size:28px;line-height:1.1;font-weight:700;color:#111111">300&deg;F</p>
<p style="margin:6px 0 0;font-size:13px;line-height:1.45;color:#41505f">Long-term heat the polyester/acrylic stock is rated to</p>
</div>
<div style="flex:1 1 150px;min-width:150px;padding:14px 16px;background:#ffffff;border:1px solid #dde3e9;border-top:3px solid #0060a8;border-radius:8px">
<p style="margin:0;font-size:28px;line-height:1.1;font-weight:700;color:#111111">50&deg;F</p>
<p style="margin:6px 0 0;font-size:13px;line-height:1.45;color:#41505f">Surface temperature below which the same adhesive stops wetting out</p>
</div>
</div>
<p style="margin:14px 0 0;font-size:12px;line-height:1.5;color:#6b7785">Sources: Hydrite, &ldquo;Are You Aware&hellip;? Vol.&nbsp;45 &mdash; Required Caustic Concentrations,&rdquo; May 2023; 3M Technical Data Sheet, Thermal Transfer Polyester Label Material 7818, rev. December 2025.</p>
</div>
<p>Read those four together and the picture changes. Heat is not the problem. A polyester and acrylic construction is rated well past any wash temperature a food plant runs. The problem is at the other end of the range, and we come back to it below.</p>
<h2>Three ways a plant label fails, and the spec that stops each</h2>
<p>Failures look different from each other, and each one points at a different layer of the construction. Diagnosing which one you have tells you what to change.</p>
<div style="background:#eef4fb;border:1px solid #d3e0f0;border-radius:10px;padding:20px 24px;margin:28px auto;max-width:100%">
<p style="color:#0b2a4a;font-weight:700;font-size:18px;margin:0 0 10px">Match the symptom to the layer</p>
<ul style="color:#1a1a1a;margin:0;padding-left:20px">
<li style="color:#1a1a1a;margin:6px 0"><strong>Edges lift, corners curl, water gets under.</strong> The adhesive. Either it is a rubber or general-purpose acrylic that softens hot and wet, or it never reached full bond at application.</li>
<li style="color:#1a1a1a;margin:6px 0"><strong>The face is intact but the print is gone or gray.</strong> The image. Surface-printed ink and wax ribbons abrade off under spray and dissolve in caustic. The face outlives the copy, which is the worst version of the failure &mdash; the label looks attached and tells you nothing.</li>
<li style="color:#1a1a1a;margin:6px 0"><strong>The face itself swells, wrinkles, or goes brittle.</strong> The facestock. Paper and most vinyls do not belong in a wash zone. Cast vinyl will shrink and pull its own edges up as it does.</li>
</ul>
</div>
<p>A plant whose labels were bought from different suppliers over many years can have all three failures going on in different rooms. Standardizing the construction matters more than upgrading any one part of it.</p>
<h2>The constructions that hold up</h2>
<p>For equipment identification, rating plates, and rack labels in a wash zone, the working answer is a polyester facestock with a firm acrylic adhesive, and the print protected rather than exposed.</p>
<p>The published numbers for that class of stock are steady. 3M&#8217;s data sheet for its 7818 matte silver polyester puts long-term temperature resistance at 149&deg;C (300&deg;F) and the low end at &minus;40&deg;C. Twenty-four hours at 100% relative humidity produces &ldquo;no significant change in appearance or adhesion.&rdquo; That stock is UL Recognized under file PGJI2.MH16411 to ANSI/UL 969.</p>
<p>Where the substrate matters most is adhesion, and the gap between materials is larger than people expect. On the same 180&deg; peel test &mdash; ASTM D3330, 72-hour dwell, 23&deg;C &mdash; that adhesive pulls 5.6 N/cm from stainless steel and 5.7 N/cm from polycarbonate, but only 2 N/cm from polypropylene. Stainless and painted steel hold a label. Low-surface-energy plastics &mdash; polypropylene guards, HDPE totes, some conveyor components &mdash; give you roughly a third of the bond, and they are exactly the parts a pressure washer gets closest to.</p>
<p>For those spots, the options are a different adhesive class, a mechanically fastened plate, or a tag that does not rely on adhesion at all. It is a quoting question, not a catalog question: what the label is going <em>on</em> matters more than how many you need.</p>
<p>Print method follows the same logic. TLF runs digital, flexographic, and <a href="https://www.tlfgraphicsusa.com/print-technologies/">screen printing</a> in-house, and screen is the one we reach for when the requirement is outdoor durability on rigid and thick substrates. Subsurface printing, where the image sits on the back of a clear face and the face becomes the armor, is the most durable answer for a control panel or overlay that gets sprayed. For in-plant thermal transfer printing, the ribbon is part of the spec: resin ribbons, not wax, on topcoated polyester.</p>
<h2>Most washdown failures happen at application, not in service</h2>
<p>This is the finding that surprises maintenance managers, and it is the fourth tile above.</p>
<p>3M&#8217;s application guidance for that polyester stock is explicit: the minimum application temperature is 10&deg;C (50&deg;F), and &ldquo;low temperature surfaces, below 50&deg;F (10&deg;C), can cause the adhesive to become so firm that it will not develop maximum contact with the substrate.&rdquo; The data sheet also asks for a clean, dry surface, and notes that higher initial bonds come from more rubdown pressure.</p>
<p>Now picture where plant labels actually get applied. A cooler at 38&deg;F. A blast freezer anteroom. A stainless jacket still cold from the morning&#8217;s product. The label goes on, looks perfect, and never builds the bond it was specified for. It comes off at the first wash, and everyone blames the adhesive.</p>
<div style="background:#eef4fb;border:1px solid #d3e0f0;border-radius:10px;padding:20px 24px;margin:28px auto;max-width:100%">
<p style="color:#0b2a4a;font-weight:700;font-size:18px;margin:0 0 10px">Application rules that cost nothing</p>
<ul style="color:#1a1a1a;margin:0;padding-left:20px">
<li style="color:#1a1a1a;margin:6px 0">Apply above 50&deg;F surface temperature, not above 50&deg;F air temperature. Measure the metal.</li>
<li style="color:#1a1a1a;margin:6px 0">Degrease first. Isopropyl alcohol on a lint-free wipe, then let it flash off. A sanitizer film is not a clean surface.</li>
<li style="color:#1a1a1a;margin:6px 0">Rub the label down under firm pressure across the whole area, especially the edges and corners.</li>
<li style="color:#1a1a1a;margin:6px 0">Give the bond time before the first wash. Acrylic adhesives keep building for hours after application.</li>
<li style="color:#1a1a1a;margin:6px 0">Keep labels off seams, weld beads, and radius edges where spray gets under an edge and lifts it.</li>
</ul>
</div>
<h2>What a food-safety auditor will ask about</h2>
<p>Two documents come up. Know which one applies to your label.</p>
<p><strong>21 CFR 175.105.</strong> This is FDA&#8217;s rule on adhesives used as components of articles intended for packaging, transporting, or holding food. It permits them under prescribed conditions, and the central one is that the adhesive &ldquo;is either separated from the food by a functional barrier or used subject to the following additional limitations,&rdquo; which cap the quantity that may contact dry, fatty, and aqueous foods. In practice, a label on a machine frame is outside this; a label on a tote that holds product is a conversation to have before the job is quoted.</p>
<p><strong>ANSI/UL 969, Marking and Labeling Systems.</strong> UL describes the evaluation as a construction examination plus testing for permanence through environmental conditioning that &ldquo;typically includes high humidity or occasional exposure to water, elevated temperatures, sunlight and chemical agents,&rdquo; and notes the standard is referenced in over 450 UL and 30 ULC end-product standards. The important word is <em>systems</em>: face, adhesive, ink, ribbon, and overlaminate are recognized together, on a named surface. Swap the ribbon and you no longer have the recognized construction. TLF is a UL Authorized Label Supplier and prints to recognized constructions, which we cover in detail in our guide to <a href="https://www.tlfgraphicsusa.com/ul-labels-rochester-ny/">UL labels</a>.</p>
<p>Beyond those two, plants working to BRCGS, SQF, or a customer&#8217;s own standard usually need the label itself to be accounted for in the foreign-material program. A label that can shed a corner into a product stream is a hazard, not just a nuisance &mdash; another argument for one qualified construction across the plant rather than whatever was in the supply closet.</p>
<h2>Plant identification labels are not product labels</h2>
<p>Worth separating clearly, because the two get quoted as one thing and they are not.</p>
<p>Product labels face the consumer, carry regulated content, and are judged on shelf appeal and cold-chain performance. If that is your project, our work on <a href="https://www.tlfgraphicsusa.com/food-grocery/">food and grocery labeling</a> and our guide to <a href="https://www.tlfgraphicsusa.com/durable-materials-for-custom-food-label-printing-services-rochester-ny/">fridge-to-freezer durability</a> are the right starting points.</p>
<p>Plant identification labels face the sanitation crew. Nobody buys anything because of them. They exist so the right valve gets closed, the right machine gets locked out, and the right asset number goes on the work order &mdash; which is the same job our <a href="https://www.tlfgraphicsusa.com/equipment-labels-rochester/">equipment labels</a> and <a href="https://www.tlfgraphicsusa.com/asset-tags-rochester/">barcode asset tags</a> do on a shop floor, under harsher cleaning.</p>
<h2>Specifying a washdown label with TLF Graphics in Rochester, NY</h2>
<p>We are a label and product decoration manufacturer in Rochester, New York. <a href="https://www.tlfgraphicsusa.com/industrial-labeling/">Industrial labeling</a> for washdown areas is specified from the environment it goes into, not from a part number. To quote a washdown job accurately we need four things:</p>
<ul>
<li><strong>The surface.</strong> Stainless, painted steel, powder coat, polypropylene, or something else. Photograph it if it is easier than describing it.</li>
<li><strong>The cleaning regime.</strong> Chemistry, concentration, temperature, and how often. &ldquo;Caustic, 1.5%, 175&deg;F, three times a week&rdquo; is a spec. &ldquo;It gets washed&rdquo; is not.</li>
<li><strong>What has to stay readable.</strong> Fixed text, a barcode, sequential asset numbers, or a full rating plate &mdash; variable data changes the print method.</li>
<li><strong>Whether a listing depends on it.</strong> If the end product is UL certified, say so up front so the construction is recognized rather than merely durable.</li>
</ul>
<p>If you also print labels inside the plant, our <a href="https://www.tlfgraphicsusa.com/labeling-systems/">labeling systems</a> line covers the printers, ribbons, stock, and applicators, so the stock you buy and the ribbon you run are specified as one system instead of two purchases.</p>
<p>Send us the surface, the chemistry, and the quantity and we will come back with a construction and a price. <a href="https://www.tlfgraphicsusa.com/contact-us/">Contact TLF Graphics</a> to start a washdown label specification.</p>
<h2>Washdown label questions</h2>
<p><strong>What makes a label washdown-resistant?</strong><br />
Three things together: a facestock that does not absorb water or soften in hot caustic, usually polyester; an adhesive that keeps its bond wet and hot, usually a firm acrylic; and printing that sits under the surface rather than on top of it, through subsurface screen printing, an overlaminate, or a resin thermal transfer ribbon. Change any one of the three and the construction is no longer washdown-resistant.</p>
<p><strong>Do washdown labels need to be UL 969 recognized?</strong><br />
Only where the end-product standard calls for it, such as a rating plate or a safety marking on certified equipment. UL says ANSI/UL 969 is referenced in over 450 UL and 30 ULC end-product standards, and its evaluation conditions labels against high humidity or occasional exposure to water, elevated temperatures, sunlight and chemical agents. For a plain rack or valve label that no listing depends on, UL recognition is useful evidence of permanence rather than a requirement.</p>
<p><strong>Can a washdown label touch food?</strong><br />
Plant identification labels are normally applied to equipment and structure, not to food or food-contact surfaces. Where an adhesive is a component of an article used in packaging, transporting, or holding food, 21 CFR 175.105 applies, and the regulation requires the adhesive to be separated from the food by a functional barrier or held to the limits it sets. Tell your label supplier where the label lands so the right construction is quoted.</p>
<p><strong>Why do new labels peel off in the cooler but not on the line?</strong><br />
Because of the surface temperature at application, not the cleaning. 3M&#8217;s data sheet for its 7818 polyester label material gives a minimum application temperature of 10&deg;C (50&deg;F), and warns that surfaces below that can make the acrylic adhesive so firm it will not develop full contact with the substrate. A label applied in a 38&deg;F cooler never builds its bond, then fails at the first wash.</p>
<p><strong>Are barcode labels printed in-house durable enough for washdown?</strong><br />
They can be, but the ribbon decides it as much as the stock. Wax and wax-resin ribbons are made for cartons and cold-chain use. Resin ribbons are the ones matched to topcoated polyester for chemical and abrasion resistance. If you print rack and asset labels on a thermal transfer printer in the plant, specify the stock and the ribbon as one system.</p>
<p style="font-size:13px;line-height:1.6;color:#6b7785;margin-top:28px"><strong>Sources.</strong> Caustic concentrations and CIP temperatures: Hydrite, &ldquo;Are You Aware&hellip;? Vol.&nbsp;45 &mdash; Required Caustic Concentrations,&rdquo; May 2023. Label material properties, peel adhesion (ASTM D3330), temperature limits, and application guidance: 3M Technical Data Sheet, &ldquo;3M&trade; Thermal Transfer Polyester Label Material 7818,&rdquo; revised December 2025. Adhesive regulation: 21 CFR 175.105, current eCFR text. UL 969 evaluation scope and reference count: UL, &ldquo;Marking and Labeling Systems,&rdquo; Performance Materials program literature. Material examples are illustrative of the construction class; TLF Graphics quotes the specific stock, adhesive, and ribbon against your application.</p>
]]></content:encoded>



			</item>
		<item>
		<title>Window Graphics in Rochester, NY: A Buyer&#8217;s Guide</title>
		<link>https://www.tlfgraphicsusa.com/window-graphics-rochester/#utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=window-graphics-rochester</link>

		<dc:creator><![CDATA[Howell Studios]]></dc:creator>
		<pubDate>Tue, 29 Sep 2026 13:20:00 +0000</pubDate>
				<category><![CDATA[Point of Purchase]]></category>
		<category><![CDATA[point of purchase]]></category>
		<category><![CDATA[retail signage]]></category>
		<category><![CDATA[Rochester]]></category>
		<guid isPermaLink="false">https://www.tlfgraphicsusa.com/?p=24272</guid>

					<description><![CDATA[Window graphics in Rochester, NY: perforated one-way vision film, frosted vinyl, how long each is rated to last outdoors, and what drives the price.]]></description>
										<content:encoded><![CDATA[<p><script type="application/ld+json">
{
  "@context": "https://schema.org",
  "@graph": [
    {
      "@type": "BlogPosting",
      "@id": "https://www.tlfgraphicsusa.com/window-graphics-rochester/#article",
      "headline": "Window Graphics in Rochester, NY: A Buyer's Guide",
      "description": "A practical guide to window graphics for Rochester businesses: perforated one-way vision film, frosted vinyl, rated durability, cost drivers, and how to order locally.",
      "datePublished": "2026-09-29",
      "dateModified": "2026-09-29",
      "inLanguage": "en-US",
      "mainEntityOfPage": {
        "@type": "WebPage",
        "@id": "https://www.tlfgraphicsusa.com/window-graphics-rochester/"
      },
      "author": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/about-us/"
      },
      "publisher": {
        "@type": "Organization",
        "name": "TLF Graphics Inc.",
        "url": "https://www.tlfgraphicsusa.com/"
      }
    },
    {
      "@type": "LocalBusiness",
      "@id": "https://www.tlfgraphicsusa.com/#business",
      "name": "TLF Graphics Inc.",
      "url": "https://www.tlfgraphicsusa.com/",
      "telephone": "+1-585-272-5500",
      "description": "ISO 9001:2015 certified specialty label and graphics printer and UL Authorized Label Supplier in Rochester, NY.",
      "address": {
        "@type": "PostalAddress",
        "streetAddress": "235 Metro Park",
        "addressLocality": "Rochester",
        "addressRegion": "NY",
        "postalCode": "14623",
        "addressCountry": "US"
      },
      "areaServed": "United States"
    },
    {
      "@type": "BreadcrumbList",
      "itemListElement": [
        {
          "@type": "ListItem",
          "position": 1,
          "name": "Home",
          "item": "https://www.tlfgraphicsusa.com/"
        },
        {
          "@type": "ListItem",
          "position": 2,
          "name": "Blog",
          "item": "https://www.tlfgraphicsusa.com/blog/"
        },
        {
          "@type": "ListItem",
          "position": 3,
          "name": "Window Graphics in Rochester, NY: A Buyer's Guide",
          "item": "https://www.tlfgraphicsusa.com/window-graphics-rochester/"
        }
      ]
    },
    {
      "@type": "FAQPage",
      "mainEntity": [
        {
          "@type": "Question",
          "name": "Are window graphics see-through from the inside?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Perforated one-way vision film is. It is dotted with tiny holes, so people outside read a full printed graphic while staff and customers inside still see out. Avery Dennison's 60/40 perforation pattern is the one specified for stationary windows. Solid printed vinyl blocks the view. Frosted vinyl still passes light but blurs what is behind it, which is why it is used on conference rooms and glass doors."
          }
        },
        {
          "@type": "Question",
          "name": "How long do window graphics last on an exterior window?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "It depends on the film and whether it is laminated. Avery Dennison rates its MPI 3529 perforated window film at 1 year printed and 2 years unprinted. Its DOL 6460 gloss overlaminate is rated for 4 to 5 years of durability in vertical applications, which is what a window is, and up to 2 years horizontal. Interior graphics are not exposed to weather and last longer. Screen printing is the method TLF Graphics names for outdoor durability."
          }
        },
        {
          "@type": "Question",
          "name": "Will window graphics damage my glass, and can they be removed?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Window films use pressure-sensitive adhesives made for glass, and many are specified as removable so a seasonal promotion comes down cleanly. Avery Dennison lists its MPI 3529 perforated film as removable. Removability depends on the film, the surface and how long the graphic has been up, so say up front whether the job is temporary or long-term and the right adhesive can be specified."
          }
        },
        {
          "@type": "Question",
          "name": "Can you print full color and a different design per location?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Yes. TLF Graphics states that digital printing gives extremely high quality regardless of quantity, with unlimited versions and variable data. Store-specific artwork, changing promotions, or a different design in every window are all workable without new tooling for each version."
          }
        },
        {
          "@type": "Question",
          "name": "Does TLF Graphics serve businesses outside the city of Rochester?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Yes. TLF Graphics prints at 235 Metro Park in Rochester, NY, with an operations facility at 145 Metro Park, and serves clients regionally and nationally. It states it prints from a quantity of one to millions, so a single cafe window and a multi-location rollout both fit."
          }
        }
      ]
    }
  ]
}
</script></p>
<p>Window graphics are printed or cut films applied to storefront glass, office doors and interior partitions to advertise a product, reinforce a brand, or add privacy. For a Rochester business, they turn the one surface every passerby already looks at into working advertising space. This guide covers what window graphics are, what the research says they return, the film choices, how long each one is rated to last, what drives the price, and how to order them from a printer in Rochester.</p>
<div class="callout" style="background:#f0f4ff;border:1px solid #d4ddf3;border-left:4px solid #0060a8;border-radius:8px;padding:18px 22px;margin:28px auto">
<p style="color:#1a1a1a;font-weight:700;font-size:18px;margin:0 0 10px">Key takeaways</p>
<ul style="color:#1a1a1a;margin:0;padding-left:20px">
<li style="color:#1a1a1a;margin:6px 0">E-commerce was 17.1 percent of U.S. retail sales in Q2 2026, so more than 80 cents of every retail dollar is still spent in physical space.</li>
<li style="color:#1a1a1a;margin:6px 0">Businesses that updated their signage reported gains of about 10 percent in sales, profits and transactions.</li>
<li style="color:#1a1a1a;margin:6px 0">Perforated one-way vision film shows a full graphic outside while people inside still see out. The 60/40 pattern is the one specified for stationary windows.</li>
<li style="color:#1a1a1a;margin:6px 0">A gloss overlaminate is what buys outdoor life: Avery Dennison rates its DOL 6460 at 4 to 5 years vertical.</li>
<li style="color:#1a1a1a;margin:6px 0">TLF Graphics lists window graphics under retail signage and prints in Rochester from a quantity of one to millions.</li>
</ul>
</div>
<h2 style="color:#000000">What are window graphics, and why do Rochester businesses use them?</h2>
<p>E-commerce accounted for 17.1 percent of total U.S. retail sales in the second quarter of 2026, according to the <a href="https://www.census.gov/retail/ecommerce.html">U.S. Census Bureau</a>. More than 80 cents of every retail dollar is still spent in a physical place. That is the argument for window graphics in one number. The storefront is where most buying decisions still begin, and the window is the first thing a shopper reads.</p>
<p>Window graphics is an umbrella term. It covers full-color printed clings and decals, perforated one-way vision film, frosted or etched privacy vinyl, opaque cut-vinyl lettering and logos, and printed film that covers an entire pane. A coffee shop might use a frosted band for privacy and a small cut logo. An equipment dealer might run a seasonal promotion across a showroom window. A medical office might use etched vinyl on a glass door.</p>
<p>TLF Graphics lists window graphics as one of the applications under <a href="https://www.tlfgraphicsusa.com/retail-signage/">retail signage</a>, alongside POP displays, aisle signage, counter mats, backlit signs, floor graphics, wall graphics and banners. The stated aim of that page is blunt: increase traffic, promote your product, stimulate sales. Because the same shop prints the rest of those pieces, a window program can match the in-store messaging behind it rather than standing on its own.</p>
<h2 style="color:#000000">Do window graphics bring people into a store?</h2>
<p>The research on signage is specific rather than vague. The Economics Center at the University of Cincinnati surveyed companies for a report called <em>The Economic Value of On-Premise Signage</em>. About two thirds of companies had updated their signage in the previous five years, and those that had reported increases of about 10 percent in sales, profits and number of transactions. An earlier 2012 FedEx Office study found that three fourths of consumers had entered a store or referred a friend because a sign made the business stand out, and that bad or missing signage pushed them the other way. Both are reported by <a href="https://www.printingnews.com/wide-format-signage/article/10824541/industry-insights-the-economic-value-of-signs">Printing News</a>.</p>
<p>Scale matters locally too. The Rochester metro area supported about 515,000 nonfarm jobs in August 2026, seasonally adjusted, per the U.S. Bureau of Labor Statistics. That is the commuter and shopper base walking and driving past storefronts on Monroe Avenue, through the East End and across the suburbs. A window graphic works on all of them around the clock. It advertises after you close and costs nothing per impression once it is up.</p>
<h2 style="color:#000000">What types of window graphics can you order?</h2>
<p>Perforated one-way vision film is the option most retailers ask about first. Avery Dennison describes its Perforated Window Series as film that allows window surfaces to &#8220;display printed graphics without completely restricting vision.&#8221; Its MPI 3729 uses a 60/40 perforation pattern that the company says &#8220;allows the best possible image quality while maintaining one-way visibility on stationary windows.&#8221; The 50/50 pattern on MPI 3529 is aimed at vehicle applications, where more see-through is needed (<a href="https://graphics.averydennison.com/en/home/news/newsletter/archives/august-2014/new-window-perforated-films.html">Avery Dennison</a>). For a storefront pane, 60/40 is the relevant one.</p>
<p>Beyond perforated film, the common builds are:</p>
<table style="width:100%;border-collapse:collapse;table-layout:fixed;font-size:14px;margin:18px 0">
<thead>
<tr>
<th style="text-align:left;padding:10px 8px;border-bottom:2px solid #0060a8;word-wrap:break-word">Type</th>
<th style="text-align:left;padding:10px 8px;border-bottom:2px solid #0060a8;word-wrap:break-word">Best for</th>
<th style="text-align:left;padding:10px 8px;border-bottom:2px solid #0060a8;word-wrap:break-word">Notes</th>
</tr>
</thead>
<tbody>
<tr>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Printed cling or decal</td>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Promotions, hours, seasonal art</td>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Removable or permanent adhesive</td>
</tr>
<tr>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Perforated one-way vision film</td>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Large storefront panes</td>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Graphic outside, see-through inside</td>
</tr>
<tr>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Frosted or etched privacy vinyl</td>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Conference rooms, glass doors</td>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Passes light, blurs the view</td>
</tr>
<tr>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Opaque cut vinyl</td>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Names, hours, phone numbers</td>
<td style="padding:10px 8px;border-bottom:1px solid #e3e8ee;word-wrap:break-word">Crisp edges, single or spot colors</td>
</tr>
</tbody>
</table>
<p>The right build depends on the glass and the goal. TLF runs window graphics through the same floor as its industrial work, so its <a href="https://www.tlfgraphicsusa.com/print-technologies/">print technologies</a> decide the method: digital printing for &#8220;extremely high quality, regardless of quantity&#8221; with &#8220;unlimited versions and variable data,&#8221; which suits short runs and store-specific art, and screen printing where the page calls out &#8220;outdoor durability&#8221; and rigid or thick substrates on medium to large volumes.</p>
<h2 style="color:#000000">How long does a window graphic last outdoors?</h2>
<p>This is the question that separates a graphic that still looks deliberate next spring from one that has faded into an apology. The answer is set by the film, and by whether it carries a protective overlaminate. Avery Dennison publishes ratings for both, and they are worth reading before you approve a quote.</p>
<figure class="hs-fig" style="margin:28px auto;padding:20px 22px;background:#f7f9fb;border:1px solid #dde3e9;border-radius:12px">
<p style="margin:0 0 6px;font-size:12px;letter-spacing:.08em;text-transform:uppercase;font-weight:700;color:#0060a8">How long it is rated to last</p>
<p style="margin:0 0 4px;font-size:19px;font-weight:700;color:#111111">Manufacturer-rated durability, in years</p>
<p style="margin:0 0 16px;font-size:14px;line-height:1.5;color:#41505f">Avery Dennison&#8217;s published ratings for its perforated window film and the gloss overlaminate used to protect a printed graphic. A window is a vertical application.</p>
<div>
<div style="margin:0 0 14px">
<p style="margin:0 0 5px;font-size:14px;color:#41505f">MPI 3529 perforated, printed</p>
<div style="display:flex;align-items:center;gap:10px">
<div style="width:calc((100% - 64px) * 1/5);height:22px;background:#0060a8;border-radius:3px"></div>
<p><span style="font-size:14px;font-weight:700;color:#111111;white-space:nowrap">1 yr</span>
</div>
</div>
<div style="margin:0 0 14px">
<p style="margin:0 0 5px;font-size:14px;color:#41505f">MPI 3529 perforated, unprinted</p>
<div style="display:flex;align-items:center;gap:10px">
<div style="width:calc((100% - 64px) * 2/5);height:22px;background:#0060a8;border-radius:3px"></div>
<p><span style="font-size:14px;font-weight:700;color:#111111;white-space:nowrap">2 yr</span>
</div>
</div>
<div style="margin:0 0 14px">
<p style="margin:0 0 5px;font-size:14px;color:#41505f">DOL 6460 gloss lam, horizontal</p>
<div style="display:flex;align-items:center;gap:10px">
<div style="width:calc((100% - 64px) * 2/5);height:22px;background:#0060a8;border-radius:3px"></div>
<p><span style="font-size:14px;font-weight:700;color:#111111;white-space:nowrap">2 yr</span>
</div>
</div>
<div style="margin:0">
<p style="margin:0 0 5px;font-size:14px;color:#41505f">DOL 6460 gloss lam, vertical</p>
<div style="display:flex;align-items:center;gap:10px">
<div style="width:calc((100% - 64px) * 5/5);height:22px;background:#0060a8;border-radius:3px"></div>
<p><span style="font-size:14px;font-weight:700;color:#111111;white-space:nowrap">4&ndash;5 yr</span>
</div>
</div>
</div><figcaption style="margin:16px 0 0;font-size:12px;line-height:1.5;color:#41505f">Source: Avery Dennison product announcement, MPI 3529, MPI 3729, DOL 6460. Read 29 September 2026.</figcaption></figure>
<p>Two things follow from that chart. An unlaminated printed perforated film is a one-season product, which is fine for a holiday promotion and wrong for a permanent logo. And lamination is not an upsell line, it is the difference between one year and four or five on a vertical pane. Interior graphics are not exposed to weather and are not governed by these numbers at all.</p>
<h2 style="color:#000000">How much do window graphics cost in Rochester, and what drives the price?</h2>
<p>There is no single price for a window graphic, because the job is built from variables rather than sold off a shelf. A quote turns on a handful of factors. Knowing them helps you set a budget and compare two bids fairly.</p>
<ul>
<li><strong>Coverage and size.</strong> A small cut-vinyl logo and a full-pane perforated wrap are very different amounts of material and labor.</li>
<li><strong>Film type.</strong> Solid printed vinyl, perforated one-way film and frosted privacy vinyl carry different material costs.</li>
<li><strong>Color and complexity.</strong> A single-color cut logo is simpler than a full-color photographic print with fine gradients.</li>
<li><strong>Lamination.</strong> An overlaminate adds cost and, per the ratings above, multiplies outdoor life.</li>
<li><strong>Installation access.</strong> Ground-level interior glass is quick. Tall exterior panes, ladders or after-hours work add labor.</li>
<li><strong>Quantity.</strong> One window differs from an identical set across ten locations, where setup is shared across the run.</li>
</ul>
<p>Print method also shapes the math. For a one-off storefront or store-specific art, digital printing avoids setup and is efficient at low volume. For a large repeating rollout, screen printing spreads its setup across many pieces and adds outdoor durability. Ask where your quantity lands on that curve before you commit.</p>
<h2 style="color:#000000">How do you order window graphics from TLF Graphics in Rochester?</h2>
<p>The sequence is short. Measure the glass, or ask for a site visit, so the graphic fits the pane exactly. Hand off or build the artwork and approve a proof. The graphics are printed and finished. Then they are applied, either by your own team or by an installer. Settle who applies them in the quote rather than after the box arrives, because access and after-hours labor are the line items that move most.</p>
<p>Working with a local shop shortens every one of those steps. TLF Graphics prints and finishes in Rochester at 235 Metro Park, Rochester, NY 14623, with an operations facility at 145 Metro Park. It is an ISO 9001:2015 certified company running more than 75 printing and finishing devices, and it states it prints from a quantity of one to millions, so a single cafe window and a regional retail rollout both fit. You can see past work in the <a href="https://www.tlfgraphicsusa.com/gallery/">project gallery</a>, pair a window program with in-store pieces from the <a href="https://www.tlfgraphicsusa.com/counter-mats-new-york-buyers-guide/">counter mats guide</a> or the <a href="https://www.tlfgraphicsusa.com/trade-show-displays-rochester/">trade show displays guide</a>, or bundle it with the <a href="https://www.tlfgraphicsusa.com/custom-label-printing-rochester-ny/">custom label printing in Rochester</a> many local brands already order there. When you are ready, <a href="https://www.tlfgraphicsusa.com/contact-us/">contact the TLF team</a> with your window sizes, whether the pane is interior or exterior, and how long the graphic needs to stay up.</p>
<h2 style="color:#000000">Frequently asked questions</h2>
<p><strong>Are window graphics see-through from the inside?</strong><br />
Perforated one-way vision film is. It is dotted with tiny holes, so people outside read a full printed graphic while staff and customers inside still see out. Avery Dennison&#8217;s 60/40 perforation pattern is the one specified for stationary windows. Solid printed vinyl blocks the view. Frosted vinyl still passes light but blurs what is behind it, which is why it is used on conference rooms and glass doors.</p>
<p><strong>How long do window graphics last on an exterior window?</strong><br />
It depends on the film and whether it is laminated. Avery Dennison rates its MPI 3529 perforated window film at 1 year printed and 2 years unprinted. Its DOL 6460 gloss overlaminate is rated for 4 to 5 years in vertical applications, which is what a window is, and up to 2 years horizontal. Interior graphics are not exposed to weather and last longer. Screen printing is the method TLF Graphics names for outdoor durability.</p>
<p><strong>Will window graphics damage my glass, and can they be removed?</strong><br />
Window films use pressure-sensitive adhesives made for glass, and many are specified as removable so a seasonal promotion comes down cleanly. Avery Dennison lists its MPI 3529 perforated film as removable. Removability depends on the film, the surface and how long the graphic has been up, so say up front whether the job is temporary or long-term and the right adhesive can be specified.</p>
<p><strong>Can you print full color and a different design per location?</strong><br />
Yes. TLF Graphics states that digital printing gives extremely high quality regardless of quantity, with unlimited versions and variable data. Store-specific artwork, changing promotions, or a different design in every window are all workable without new tooling for each version.</p>
<p><strong>Does TLF Graphics serve businesses outside the city of Rochester?</strong><br />
Yes. TLF Graphics prints at 235 Metro Park in Rochester, NY, with an operations facility at 145 Metro Park, and serves clients regionally and nationally. It states it prints from a quantity of one to millions, so a single cafe window and a multi-location rollout both fit.</p>
<div class="author-box" style="background:#f6f6f6;border:1px solid #e2e2e2;border-radius:10px;padding:18px 22px;margin:28px auto">
<p style="color:#1a1a1a;margin:0 0 6px;font-weight:700">About TLF Graphics</p>
<p style="color:#1a1a1a;margin:0">TLF Graphics Inc. is an ISO 9001:2015 certified specialty printer in Rochester, NY, and a UL Authorized Label Supplier under file PGAA.LP1575. Its 121 printologists run flexographic, screen and digital presses across labels, product decoration and retail signage. Learn more <a href="https://www.tlfgraphicsusa.com/about-us/" style="color:#2256c7">about the company</a>.</p>
</div>
]]></content:encoded>



			</item>
		<item>
		<title>Trade Show Displays in Rochester, NY: An Exhibitor&#8217;s Guide</title>
		<link>https://www.tlfgraphicsusa.com/trade-show-displays-rochester/#utm_source=rss&#038;utm_medium=rss&#038;utm_campaign=trade-show-displays-rochester</link>

		<dc:creator><![CDATA[Howell Studios]]></dc:creator>
		<pubDate>Mon, 28 Sep 2026 13:10:00 +0000</pubDate>
				<category><![CDATA[Industry Expertise]]></category>
		<category><![CDATA[retail signage]]></category>
		<category><![CDATA[Rochester]]></category>
		<category><![CDATA[trade show displays]]></category>
		<guid isPermaLink="false">https://www.tlfgraphicsusa.com/?p=24271</guid>

					<description><![CDATA[What to buy, which TLF Graphics print process fits which display, and what producing in Rochester, NY changes about a show timeline.]]></description>
										<content:encoded><![CDATA[<p>A trade show display is the printed hardware that turns ten feet of empty carpet into a working sales space: retractable banner stands, a pop-up or fabric backwall, a printed table cover, floor graphics, and a tent if the show is outdoors. For a Rochester, NY exhibitor the buying decision is less about which banner looks best and more about which pieces survive being packed, shipped, and set up a dozen times a year, and which print process holds your brand color across every one of them. This guide covers what to buy, which of TLF Graphics&#8217; production methods fits which display, and what producing in Rochester changes about your show timeline.</p>
<div style="max-width:760px;background:#f0f4ff;border:1px solid #d5def5;border-left:5px solid #0060a8;border-radius:8px;padding:20px 24px;margin:28px auto;">
<p style="color:#000000;font-weight:700;font-size:18px;margin:0 0 10px;">Key takeaways</p>
<ul style="color:#1a1a1a;margin:0;padding-left:20px;">
<li style="color:#1a1a1a;margin-bottom:8px;">A display is a system, not one banner. The backwall, banner stands, table cover, and counter mats have to share one palette and one logo treatment or the booth reads as assembled from spare parts.</li>
<li style="color:#1a1a1a;margin-bottom:8px;">The aisle is full of buyers. CEIR reports 81% of trade show attendees have buying authority, so booth graphics are talking to people who can sign a purchase order.</li>
<li style="color:#1a1a1a;margin-bottom:8px;">Match the process to the piece. Screen printing handles rigid, outdoor-durable panels; digital handles photographic backwalls and short runs; direct-to-object handles aluminum and ADA signage.</li>
<li style="color:#1a1a1a;margin-bottom:8px;">Show-floor recovery has stalled rather than finished. Attendance is close to 2019, but the share of events beating pre-pandemic performance fell year over year.</li>
<li style="color:#1a1a1a;margin-bottom:0;">Design for reuse. Interchangeable graphic panels let one hardware kit serve several shows before anything is reprinted.</li>
</ul>
</div>
<h2 style="color:#000000;">What counts as a trade show display?</h2>
<p>A trade show display is any printed structure or graphic that builds out your exhibit space. The category covers more than most first-time exhibitors expect:</p>
<ul>
<li><strong>Retractable banner stands.</strong> The workhorse. They roll into their own base, set up in under a minute, and travel in a padded bag. Most booths run two.</li>
<li><strong>Pop-up and fabric backwalls.</strong> The eight- to ten-foot back wall, printed as one continuous image across rigid panels or a stretched fabric skin.</li>
<li><strong>Printed table covers and runners.</strong> A fitted throw that turns a bare rental table into branded space and hides the cases underneath it.</li>
<li><strong>Counters and pedestals.</strong> Portable stands for demos, literature, or a tablet check-in.</li>
<li><strong>Tents.</strong> For outdoor expos, farm shows, and festivals where the booth is a printed canopy.</li>
<li><strong>Floor and hanging graphics.</strong> Printed decals that pull traffic toward your space and overhead identifiers that make the booth findable from the aisle.</li>
</ul>
<p>TLF Graphics supplies this as one line rather than one-off pieces. The <a href="https://www.tlfgraphicsusa.com/retail-signage/">retail signage group</a> covers displays, banner stands, table covers, tents, and trade show products alongside POP displays, window graphics, counter mats, floor graphics, and banners, so a single vendor keeps the brand consistent from the backwall down to the mat on the counter.</p>
<h2 style="color:#000000;">Do trade show displays still pay off in 2026?</h2>
<p>The people you meet at a show can mostly buy. Research from the Center for Exhibition Industry Research puts it plainly: <a href="https://www.tsnn.com/trade-show-marketing/16-powerful-stats-on-the-value-of-trade-shows" rel="nofollow">81% of trade show attendees have buying authority</a>, which means four out of five people reading your backwall are decision makers rather than researchers passing the file upward. Exhibit Surveys, Inc. adds that <a href="https://www.tsnn.com/trade-show-marketing/16-powerful-stats-on-the-value-of-trade-shows" rel="nofollow">67% of all attendees represent a new prospect</a> for the exhibiting company, so the display is usually doing the introducing.</p>
<p>The floor itself has recovered most of the way, but not all of it, and that is worth stating honestly rather than selling. The CEIR Index, which tracks business-to-business exhibitions across the United States, found <a href="https://www.exhibitoronline.com/news/article.asp?ID=24668" rel="nofollow">Q2 2025 attendance sat 3.7% below the same quarter of 2019</a> — the strongest of its four metrics. Exhibitor counts lagged further, at 8.8% below 2019. And the share of tracked events that had passed their pre-pandemic performance was 32.7%, down from 39.6% a year earlier. Attendance is coming back faster than the number of companies choosing to exhibit, which is the argument for a booth that looks deliberate: there is more aisle traffic per exhibitor and fewer competitors holding the space next to you.</p>
<figure class="hs-fig" style="max-width:760px;margin:28px auto;padding:20px 22px;background:#f7f9fb;border:1px solid #dde3e9;border-radius:12px">
<p style="margin:0 0 6px;font-size:12px;letter-spacing:.08em;text-transform:uppercase;font-weight:700;color:#0060a8">Who is on the floor</p>
<p style="margin:0 0 4px;font-size:19px;font-weight:700;color:#111111">Attendance has nearly closed the gap to 2019, and most of the aisle is new faces</p>
<p style="margin:0 0 14px;font-size:14px;line-height:1.5;color:#41505f">Three numbers a Rochester exhibitor should size a booth against.</p>
<div style="display:flex;flex-wrap:wrap;gap:12px">
<div style="flex:1 1 150px;min-width:150px;padding:14px 16px;background:#ffffff;border:1px solid #dde3e9;border-top:3px solid #0060a8;border-radius:8px">
<p style="margin:0;font-size:28px;line-height:1.1;font-weight:700;color:#111111">81%</p>
<p style="margin:6px 0 0;font-size:13px;line-height:1.45;color:#41505f">of trade show attendees have buying authority</p>
</div>
<div style="flex:1 1 150px;min-width:150px;padding:14px 16px;background:#ffffff;border:1px solid #dde3e9;border-top:3px solid #0060a8;border-radius:8px">
<p style="margin:0;font-size:28px;line-height:1.1;font-weight:700;color:#111111">67%</p>
<p style="margin:6px 0 0;font-size:13px;line-height:1.45;color:#41505f">of attendees are a new prospect for the exhibiting company</p>
</div>
<div style="flex:1 1 150px;min-width:150px;padding:14px 16px;background:#ffffff;border:1px solid #dde3e9;border-top:3px solid #0060a8;border-radius:8px">
<p style="margin:0;font-size:28px;line-height:1.1;font-weight:700;color:#111111">3.7%</p>
<p style="margin:6px 0 0;font-size:13px;line-height:1.45;color:#41505f">below 2019 attendance in Q2 2025, the industry&#8217;s smallest remaining gap</p>
</div>
</div><figcaption style="margin:14px 0 0;font-size:12px;line-height:1.5;color:#41505f">Sources: CEIR, <em>The Spend Decision</em>, and Exhibit Surveys, Inc., both via TSNN; CEIR Index Q2 2025 via ExhibitorOnline. Read September 2026.</figcaption></figure>
<p>TLF Graphics works this side of the table too. The company has exhibited at <a href="https://www.tlfgraphicsusa.com/join-tlf-graphics-at-the-ara-show/">The ARA Show</a>, the American Rental Association&#8217;s annual exhibition, for several years running — booth 4533 in Las Vegas in 2021, its sixth appearance at that show. A backwall that packs flat, a table cover that hides the road cases, and banner stands one person can put up are not abstractions here.</p>
<h2 style="color:#000000;">How should a Rochester exhibitor choose print methods and materials?</h2>
<p>Match the process to the piece, because the substrate is what decides whether a graphic reads as sharp or cheap under booth lighting. TLF Graphics runs digital, flexographic, and screen production across more than 75 printing and finishing devices, printing on films, foils, paper, plastics, and pressure-sensitive materials. Here is how those methods land on display work:</p>
<ul>
<li><strong>Digital printing</strong> is the right call for photographic backwalls, retractable banners, and anything with fine gradients or product photography. TLF&#8217;s digital floor includes Durst, HP, Canon/Océ, Roland, and Matan equipment, and digital holds color repeatability regardless of run length — which matters when you reprint one damaged panel in year two and it has to match the other five.</li>
<li><strong>Screen printing</strong> is the outdoor-durable option and the one for rigid or thick substrates. TLF uses it for industrial labels, overlay panels, and retail signage, so it suits hard booth panels, counters, and anything that has to live outside at a farm show or festival.</li>
<li><strong>Direct-to-object printing</strong>, through TLF&#8217;s Direct Color Systems partnership, prints straight onto aluminum panels and difficult substrates, and produces braille and ADA-compliant signage — relevant if your booth needs permanent, compliant wayfinding rather than a paper sign.</li>
<li><strong>Embellishments</strong> from TLF&#8217;s JetFX installation add digital foiling, raised tactile screening, spot matte or gloss varnish, and digital holograms with no tooling. On a display these are for the pieces a buyer picks up: literature, spec cards, product decals.</li>
</ul>
<p>As an ISO 9001:2015 certified shop, TLF holds color and registration to a documented quality management system, which is the practical reason a backwall and a table cover printed weeks apart still read as one brand. The full process breakdown sits on the <a href="https://www.tlfgraphicsusa.com/print-technologies/">print technologies</a> page, and finished work is in the <a href="https://www.tlfgraphicsusa.com/gallery/">project gallery</a>.</p>
<h2 style="color:#000000;">What does producing in Rochester actually change?</h2>
<p>It changes what happens when something goes wrong, which on a show schedule is the only variable that matters. A display shipped from a remote printer gives you one chance: if the panel arrives scuffed, the color is off, or the file was built to the wrong booth dimensions, the fix is an overnight freight gamble against a move-in deadline. With production in Rochester you can approve color in person, walk a proof back, and collect a reprint by car.</p>
<p>TLF Graphics runs two facilities inside the same business park — a corporate headquarters at 235 Metro Park and an operations facility at 145 Metro Park, both in Rochester, NY 14623 — with 121 staff and more than 40 years of production behind the durable side of the work. For a Rochester or Finger Lakes exhibitor that means the printer is a short drive from your office, whether the show is at home or you are crating the booth for a national event.</p>
<p>One practical scheduling note that has nothing to do with the printer: work backward from the show&#8217;s own deadlines, not from your internal ones. Most shows publish an exhibitor kit with advance-warehouse and direct-to-show freight dates well before move-in, and those dates, not the print run, are usually what squeezes an exhibitor. Bring your show dates to the quote conversation and TLF can confirm what is achievable against them.</p>
<h2 style="color:#000000;">How do displays fit with the rest of your show graphics?</h2>
<p>Treat the whole booth as one printed campaign rather than a stack of separate orders. Backwall, banner stands, table cover, and the point-of-purchase pieces should carry one palette, one logo treatment, and one message, so a buyer reads ten feet of carpet as a single brand instead of a collection of vendors.</p>
<p>The small pieces do real work. Printed <a href="https://www.tlfgraphicsusa.com/counter-mats-new-york-buyers-guide/">counter mats</a> hold a message at the exact spot where the conversation happens. Floor graphics steer traffic in from the aisle. Window and wall graphics extend the brand onto whatever flat surface the venue allows. Because TLF produces displays, banners, counter mats, and floor and window graphics under one roof, those elements are color-matched to each other and ready on the same date — which beats chasing three suppliers the week of a show.</p>
<h2 style="color:#000000;">Frequently asked questions</h2>
<p><strong>When should I start ordering trade show displays?</strong><br />
Start from the show&#8217;s exhibitor kit rather than a rule of thumb. The advance-warehouse cutoff and the direct-to-show freight window are published months ahead and are the real deadline; artwork, proofing, and printing have to sit inside them. Bring those dates and your booth dimensions to TLF Graphics and the schedule gets built backward from them.</p>
<p><strong>What is the difference between a pop-up display and a fabric display?</strong><br />
A pop-up uses a collapsible frame with printed graphic panels that attach to the front, usually rigid or magnetic. A fabric display stretches a printed skin over a lightweight frame for a smooth, wrinkle-free face that packs down small. Fabric is lighter to ship and hides seams; rigid pop-ups give a firmer, more dimensional surface and take scuffs better at the edges.</p>
<p><strong>Can you match my brand colors across every piece?</strong><br />
Yes. TLF Graphics is ISO 9001:2015 certified and holds color and registration to a documented quality management system across digital, flexographic, and screen printing, so the backwall, the table cover, and the counter graphics read as the same brand under the same booth lights.</p>
<p><strong>Do you print outdoor tents as well as indoor displays?</strong><br />
Yes. The display line covers tents and table covers alongside indoor backwalls, banner stands, and trade show products, so an outdoor farm show or festival booth comes from the same place as the indoor one.</p>
<p><strong>I only need one banner stand right now. Is that worth ordering?</strong><br />
It is. A single retractable banner stand is the cheapest way to put a professional graphic behind a table, and if the artwork is built properly it scales into a full backwall later without redesigning anything.</p>
<h2 style="color:#000000;">Talk to TLF Graphics about your next show</h2>
<p>Whether it is one banner stand or a full booth for a national show, TLF Graphics prints trade show displays for Rochester exhibitors at its Metro Park facilities. Call (585) 272-5500 or <a href="https://www.tlfgraphicsusa.com/contact-us/">contact the team</a> with your show dates, booth dimensions, and what you need printed.</p>
<div class="author-box" style="color:#1a1a1a;">
<p style="color:#000000;font-weight:700;margin:0 0 6px;">About the author</p>
<p style="color:#1a1a1a;margin:0;">The TLF Graphics team is a group of specialty print professionals in Rochester, NY. TLF Graphics is an ISO 9001:2015 certified graphics company producing industrial labels, product decoration, and retail signage across digital, flexographic, and screen production. Learn more at <a href="https://www.tlfgraphicsusa.com/about-us/">tlfgraphicsusa.com</a>.</p>
</div>
<p><script type="application/ld+json">
{
  "@context": "https://schema.org",
  "@graph": [
    {
      "@type": "BlogPosting",
      "mainEntityOfPage": {
        "@type": "WebPage",
        "@id": "https://www.tlfgraphicsusa.com/trade-show-displays-rochester/"
      },
      "headline": "Trade Show Displays in Rochester, NY: An Exhibitor's Guide",
      "description": "What to buy, which print process fits which display, and what local production in Rochester changes about a show timeline.",
      "datePublished": "2026-09-28",
      "dateModified": "2026-09-28",
      "inLanguage": "en-US",
      "author": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/about-us/"
      },
      "publisher": {
        "@type": "Organization",
        "name": "TLF Graphics",
        "url": "https://www.tlfgraphicsusa.com/",
        "logo": {
          "@type": "ImageObject",
          "url": "https://www.tlfgraphicsusa.com/wp-content/uploads/2021/01/TLF-logo-340.png"
        }
      }
    },
    {
      "@type": "FAQPage",
      "mainEntity": [
        {
          "@type": "Question",
          "name": "When should I start ordering trade show displays?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Start from the show's exhibitor kit rather than a rule of thumb. The advance-warehouse cutoff and the direct-to-show freight window are published months ahead and are the real deadline; artwork, proofing, and printing have to sit inside them. Bring those dates and your booth dimensions to TLF Graphics and the schedule gets built backward from them."
          }
        },
        {
          "@type": "Question",
          "name": "What is the difference between a pop-up display and a fabric display?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "A pop-up uses a collapsible frame with printed graphic panels that attach to the front, usually rigid or magnetic. A fabric display stretches a printed skin over a lightweight frame for a smooth, wrinkle-free face that packs down small. Fabric is lighter to ship and hides seams; rigid pop-ups give a firmer, more dimensional surface and take scuffs better at the edges."
          }
        },
        {
          "@type": "Question",
          "name": "Can TLF Graphics match my brand colors across every booth piece?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Yes. TLF Graphics is ISO 9001:2015 certified and holds color and registration to a documented quality management system across digital, flexographic, and screen printing, so the backwall, the table cover, and the counter graphics read as the same brand under the same booth lights."
          }
        },
        {
          "@type": "Question",
          "name": "Does TLF Graphics print outdoor tents as well as indoor displays?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "Yes. The display line covers tents and table covers alongside indoor backwalls, banner stands, and trade show products, so an outdoor farm show or festival booth comes from the same place as the indoor one."
          }
        },
        {
          "@type": "Question",
          "name": "Is a single retractable banner stand worth ordering on its own?",
          "acceptedAnswer": {
            "@type": "Answer",
            "text": "It is. A single retractable banner stand is the cheapest way to put a professional graphic behind a table, and if the artwork is built properly it scales into a full backwall later without redesigning anything."
          }
        }
      ]
    }
  ]
}
</script></p>
]]></content:encoded>



			</item>
	</channel>
</rss>
